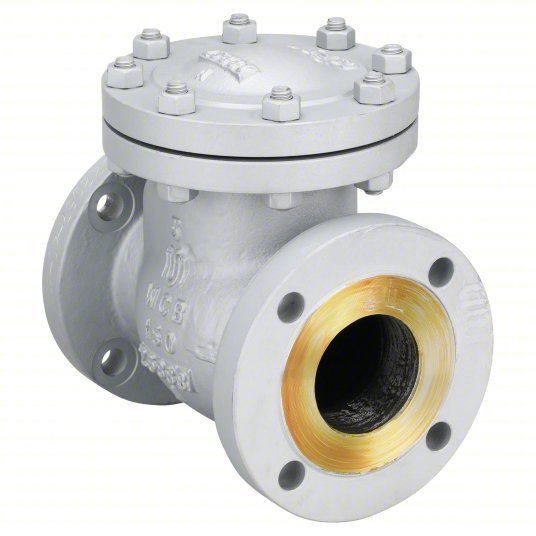

Milwaukee 1570 CB2 3" Swing Check Valve Inline Valve Body, 3 in Pipe Size, Flange x Flange, Steel

Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves Cast Steel, Pipe or Tube Size 3 in, Connection Type Flange x Flange, Cracking Pressure 2 psi, Mounting Orientation Horizontal, Seal Material Chrome, Cobalt, Max. Temp. - Valves 1,000 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 285 psi @ 100 Degrees F, Max. Steam Pressure - Valves 200 psi WSP, Seat Material Chrome, Cobalt, Flow - Valves 327 gpm

Connection Type	Flanged
Connection	Flanged
Body Material	Cast Steel
Sub-Category	Steel
Max. Temp.	1000 Degrees F @ 20 psi
Mounting Position	Horizontal
Body Material - Valves	Cast Steel
Standards	API 600 ASME B 16.34
Material of Construction	Cast Steel
Max. Water Pressure	285 psi @ 100 Degrees F
Seal Material - Check Valves	Chrome, Cobalt
Item - Check Valves	Check Valve
Seat Material	Cobalt/Chrome
Connection Type - Check Valves	Flange x Flange
Application - Valves	General Purpose
Max. Temp. - Valves	1,000 Degrees F
Cracking Pressure	2 psi
Full Flow - Valves	Yes
Item	Swing Check Valve
Flow - Valves	327 gpm
Cap to Inlet Center	7 3/32 in
Mounting Orientation - Check Valves	Horizontal
Max. Water Pressure - Valves	285 psi @ 100 Degrees F
Mechanism and Body Design	Inline Swing
Max. Steam Pressure - Valves	200 psi WSP
Min. Temp. - Valves	-20 Degrees F
Cracking Pressure - Check Valves	2.0 psi
Flow Design	Single
Seat Material - Check Valves	Chrome, Cobalt
Max. Pressure	285 psi @ 100 Degrees F
Flow	327 gpm
Seal Material	Cobalt Chrome Alloy
Mounting Orientation	Horizontal
Valve Body Style	Inline
3-A Standard Compliance	Not Rated
Connection Type - Side 1	Flange
Connection Type - Side 2	Flange
Silent Check	Standard
Maximum Pressure - Steam	200 psi
ANSI Flange Class	Class 150
Check Mechanism	Swing
Maximum Pressure - Operating	285 psi
Operating Temperature - Maximum	1,000 Degrees F
Coefficient of Volume (Cv)	282
For Media	Steam, Water
Check Mechanism Material	Steel
Vacuum Service Rating	Not Rated
Operating Temperature - Minimum	-20 Degrees F
Includes Counterweight	No Counterweight
Valve Series	1570CB2
