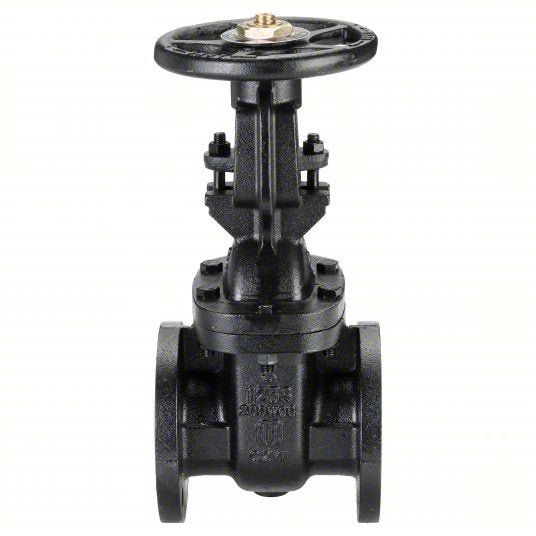

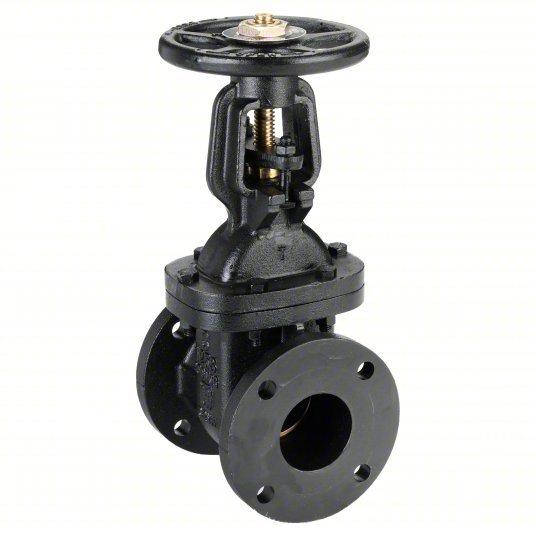

Milwaukee 2885-M 3 Gate Valve 3 in Nominal Valve Size, Cast Iron, Outside Screw and Yoke (OS&Y), Wheel

Gate Valve, For Media Gas, Oil, Water, Body Material Cast Iron, Nominal Valve Size 3 in, ANSI Flange Class Class 125, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam 125 psi, Coefficient of Volume (Cv) 510, Stem Type Outside Screw and Yoke (OS&Y), Stem Material Brass, Wedge Style Solid, Wedge Material Cast Iron, Seat Material Bronze, Seal Material Bronze, Handle Type Wheel, Bonnet Material Cast Iron, Bonnet Style Bolted, Connection Gender - Side 1

Connection Type	Flanged
Body Material	Cast Iron
UPC	697988580398
Handle Type	Hand Wheel
Standards	MSS SP-70
Valve Max. Fluid Temp.	353 Degrees F
Max. Cold Working Pressure - CWP	200 psi
Top of Handle to Inlet Center	18 19/32 in
Max. Working Steam Pressure - WSP	125 psi
Body Material - Valves	Cast Iron
Stem Material	Brass
Valve Stem Type	Rising
Bonnet Style	Bolted
Handle Material	Cast Iron
Wedge Material	Cast Iron
Max. Water Pressure - CWP	200 psi
Valve Class	Class 125
Seal Material	Bronze
Stem Type	Outside Screw and Yoke (OS&Y)
Seat Material	Bronze
For Media	Gas, Oil, Water
Operating Temperature - Minimum	-40 Degrees F
Number of Flange Bolt Holes	4
Maximum Pressure - Steam	125 psi
ANSI Flange Class	Class 125
Connection Type - Side 2	Flange
Connection Type - Side 1	Flange
Operating Temperature - Maximum	353 Degrees F
Bonnet Material	Cast Iron
Maximum Pressure - Operating	200 psi
Coefficient of Volume (Cv)	510
Wedge Style	Solid
