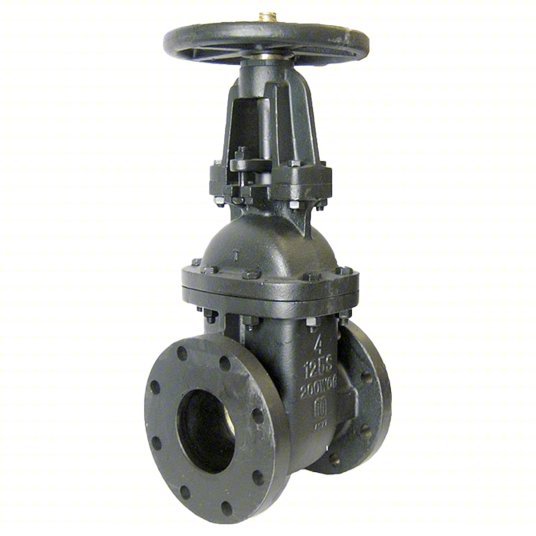

Milwaukee 2885-M 4 Gate Valve 4 in Nominal Valve Size, Cast Iron, Outside Screw and Yoke (OS&Y), Wheel

Gate Valve, For Media Gas, Oil, Water, Body Material Cast Iron, Nominal Valve Size 4 in, ANSI Flange Class Class 125, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam 125 psi, Coefficient of Volume (Cv) 945, Stem Type Outside Screw and Yoke (OS&Y), Stem Material Brass, Wedge Style Solid, Wedge Material Cast Iron, Seat Material Bronze, Seal Material Bronze, Handle Type Wheel, Bonnet Material Cast Iron, Bonnet Style Bolted

Handle Type	Hand Wheel
Bonnet Style	Bolted
Valve Class	Class 125
Valve Stem Type	Rising
Max. Water Pressure - CWP	200 psi
Max. Cold Working Pressure - CWP	200 psi
Stem Material	Brass
Standards	MSS SP-70
Wedge Material	Cast Iron
Body Material - Valves	Cast Iron
Valve Max. Fluid Temp.	353 Degrees F
Top of Handle to Inlet Center	23-45/64"
Max. Working Steam Pressure - WSP	125 psi
Handle Material	Cast Iron
Stem Type	Outside Screw and Yoke (OS&Y)
Seal Material	Bronze
Seat Material	Bronze
Connection Type - Side 1	Flange
Wedge Style	Solid
For Media	Gas, Oil, Water
ANSI Flange Class	Class 125
Operating Temperature - Minimum	-40 Degrees F
Bonnet Material	Cast Iron
Maximum Pressure - Steam	125 psi
Connection Type - Side 2	Flange
Number of Flange Bolt Holes	8
Maximum Pressure - Operating	200 psi
Coefficient of Volume (Cv)	945
Operating Temperature - Maximum	353 Degrees F
