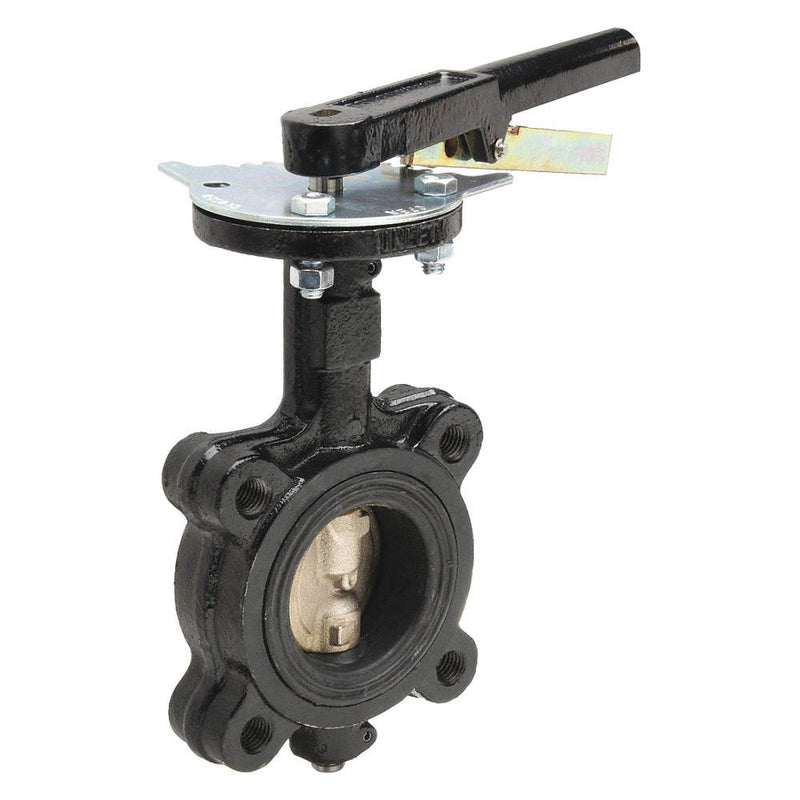

Milwaukee ML222B 3 Butterfly Valve 3 in Pipe Size, Concentric, 200 psi Max. Pressure (CWP), Lug, Lever
Original price
$311.59
-
Original price
$311.59
Original price
$311.59
$311.59
-
$311.59
Current price
$311.59
Butterfly Valve, Lug Style, Body Material Cast Iron, Max. Water Pressure 200 psi, Pipe Size 3 in, Temp. Range 10 to 180 Degrees F, Liner Material Buna-N, Disc Material Ductile Iron, Handle Type Lever, Number of Bolt Holes 4, Bolt Circle Dia. 6 in, Lug Dia. 5/8-11, Standards ABS
| Style | Lug |
| Body Material | Cast Iron |
| Max. Water Pressure | 200 psi |
| Handle Type | Lever |
| Temp. Range | 10 to 180 Degrees F |
| Standards | ABS |
| Liner Material | Buna-N |
| Number of Bolt Holes | 4 |
| Disc Material | Ductile Iron |
| Seal Material | Buna-N |
| Operating Temperature - Minimum | 10 Degrees F |
| For Media | Gas, Oil, Water |
| Number of Stop Positions | 10 |
| Maximum Pressure - Operating | 200 psi |
| Vacuum Service Rating | Not Rated |
| Operating Temperature - Maximum | 180 Degrees F |
| Coefficient of Volume (Cv) | 457 |
| Manufacturer Warranty | 1 yr |
| Maximum Pressure - Steam | Not Rated |
| Disc Alignment | Concentric |
| 3-A Standard Compliance | Not Rated |
| Includes Disc Position Indicator | Disc Position Indicator Included |
| Number of Flange Bolt Holes | 4 |
| Stem Material | 416 Stainless Steel |
| Connection Type | Lug |
| Valve Series | M |
