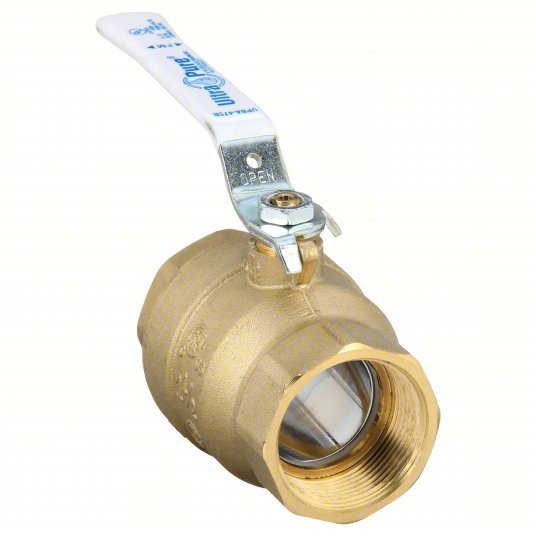

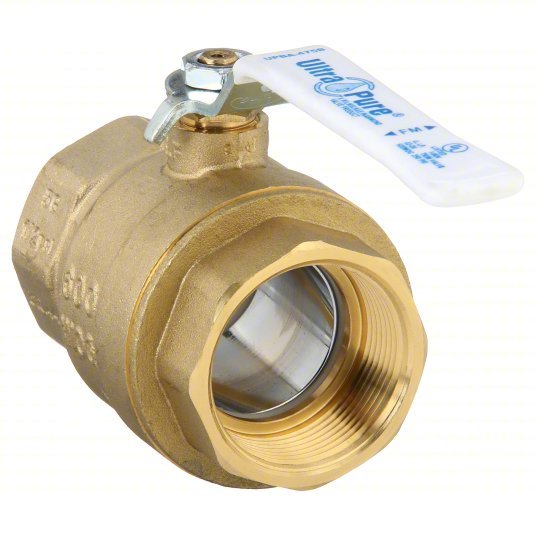

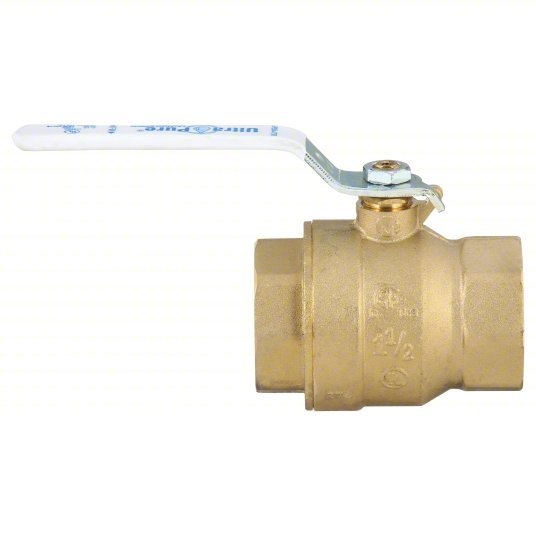

Milwaukee UPBA475B 1-1/2 Manual Two-Way Ball Valve 1 1/2 in, Brass, Straight, FNPT x FNPT, Two-Piece

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever

Body Material	Lead-Free Brass
Body Style	Inline
Temp. Range	Up to 180 Degrees F
Handle Material	Steel
Seat Material	PTFE
Stem Material	Brass
Body Seal Material	PTFE
Standards	MSS SP-110
Max. Pressure	600 psi WOG
Stem Type	Blowout Proof
Ball Valve Basic Body Material	Brass
UPC	697988624122
Port	Full
Valve Structure	2-Piece
Ball Material	Chrome Plated Brass
Ball Valve Product Group	Manual
Connection Type	FNPT x FNPT
Max. Steam Pressure	150 PSI WSP
Handle Type	Lever
Seal Material	PTFE
Cleaned and Bagged	Valve Cleaned and Bagged
Valve Body Style	Straight
Vacuum Service Rating	-29.92 in Hg
Connection Gender - Side 2	Female
Coefficient of Volume (Cv)	161
Valve Ways	2-Way
Color - Valve Handle	White
NSF Certifications for Food and Drinking Water	NSF 61
Connection Type - Side 1	NPT
Maximum Pressure - Operating	600 psi
Valve Construction	Two-Piece
Connection Gender - Side 1	Female
Operating Temperature - Maximum	180 Degrees F
Ball Port Style	Full Port
Meets UL Flammable Gas and Liquid Standards	UL 125, UL 1477, UL 842
3-A Standard Compliance	Not Rated
For Media	Water
Maximum Pressure - Combustible Gas	Not Rated
Operating Temperature - Minimum	0 Degrees F
Handle - Locking	Locking
Connection Type - Side 2	NPT
