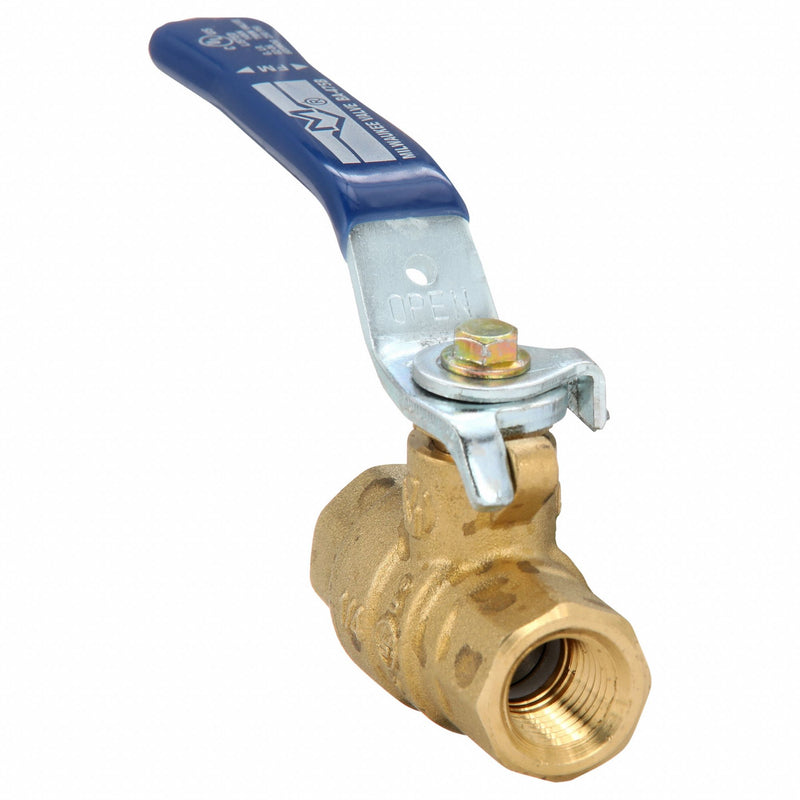

Milwaukee Valve BA-475BMS 1/4 Manual Two-Way Ball Valve, 1/4 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port
UPC: 697988581630 | Harmonization / Schedule B : 8481.80.1085
Country of Origin: China | Shipping Weight: 0.37 lbs
Original price
$26.03
-
Original price
$26.03
Original price
$26.03
$26.03
-
$26.03
Current price
$26.03
Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Water, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking
| Pipe Size | 1/4 in |
|---|---|
| Overall Length | 1.87 in |
| Handle Height | 1.42 in |
| Nominal Valve Size | 1/4 in |
| Handle Length | 3.14 in |
| Connection Size - Side 1 | 1/4 in |
| Connection Size - Side 2 | 1/4 in |
| Wire Rope Length | 1.87 in |
| Length | 1.87 in |
| Ball Material | Chrome-Plated Brass |
| Body Style | Inline |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Two-Piece |
| For Media | Combustible Gases, Water |
| Connection Type | FNPT x FNPT |
| Handle Type | Lever with Memory Stop |
| Handle Material | Zinc Plated Steel |
| Body Material | Brass |
| Seat Material | RPTFE |
| Standards | CSA, FM |
| Temp. Range | 0 Degrees to 350 Degrees F |
| Ball Valve Product Group | Manual |
| Stem Material | Brass |
| Max. Pressure | 600 PSI CWP |
| Stem Type | Blowout Resistant |
| Seal Material | PTFE |
| Type | Two Piece |
| Maximum Pressure - Combustible Gas | Not Rated |
| Connection Gender - Side 1 | Female |
| Handle - Locking | Locking |
| Cleaned and Bagged | Valve Cleaned and Bagged |
| Coefficient of Volume (Cv) | 12 |
| Connection Type - Side 1 | NPT |
| Color - Valve Handle | Blue |
| Connection Gender - Side 2 | Female |
| Vacuum Service Rating | -29.92 in Hg |
| Operating Temperature - Minimum | 0 Degrees F |
| Connection Type - Side 2 | NPT |
| Operating Temperature - Maximum | 350 Degrees F |
| Meets UL Flammable Gas and Liquid Standards | UL 125, UL 842 |
| 3-A Standard Compliance | Not Rated |
| Maximum Pressure - Steam | 150 psi |
| Valve Series | BA-475B-MS |
| Valve Body Style | Straight |
| Maximum Pressure - Operating | 600 psi |
| Valve Construction | Two-Piece |
| Country of Origin | China |
