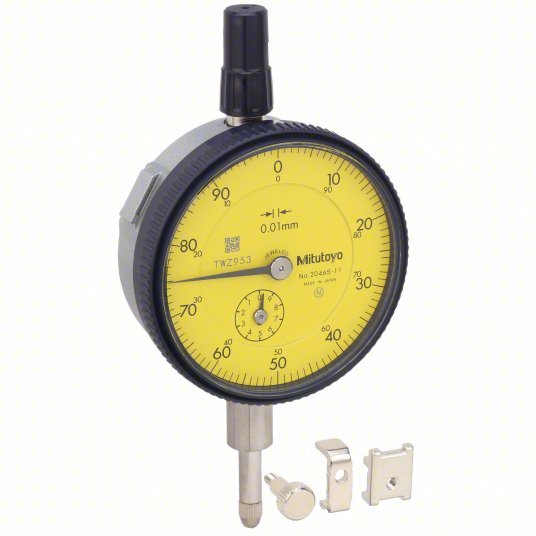

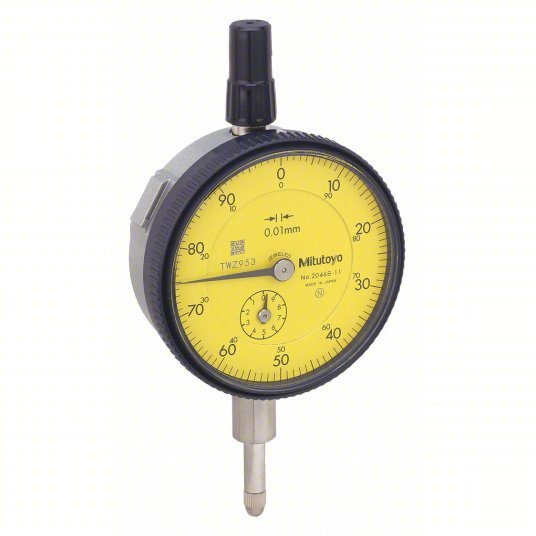

Mitutoyo 2046A-11 Dial Indicator Lug Back 0 to 10 mm Range, Continuous Reading, 0-100 Dial Reading, AGD 2

Dial Indicator - Lug Back, Range 0 to 10 mm, Graduations 0.01 mm, Accuracy +/- 0.013 mm (Overall), +/-0.01 mm, Long Form Calibration Certificate No, AGD Number AGD 2, Back Type Lug, Dial Color Yellow, Dial Reading 0-100, Dial Size 57 mm, Dimension Type Metric, Included Certification Certificate of Inspection, Maximum Measurement - mm 10 mm, Minimum Measurement - mm 0 mm, Number of Indicators 1, Operation Type Plunger, Range per Revolution 1 mm, Reading Continuous, Bearing Type Jeweled

Graduations	0.01 mm
Range	0 to 10 mm
Features	3/8 in Stem
Accuracy	+/- 0.013 mm (Overall), +/-0.01 mm
Includes	Limit Hands
Contact Point Style	Carbide Ball
Reading	Continuous
Bearing Type	Jeweled
Series	Series 2
Dial Reading	0-100
AGD No.	AGD 2
Item	Dial Indicator - Lug Back
Dial Color	Yellow
Standards	AGD, ANSI
Bezel Lock	No
Range per Revolution	1 mm
Back Type	Lug
Long Form Calibration Certificate	No
Shock Resistant	No
Contact Point Shape	Ball
Max. Measuring Force	1.4 N
Includes Case	No
Minimum Measurement - mm	0 mm
Included Certification	Certificate of Inspection
Maximum Measurement - mm	10 mm
Number of Indicators	1
Non-Magnetic	Yes
Operation Type	Plunger
AGD Number	AGD 2
Case Type	Box
