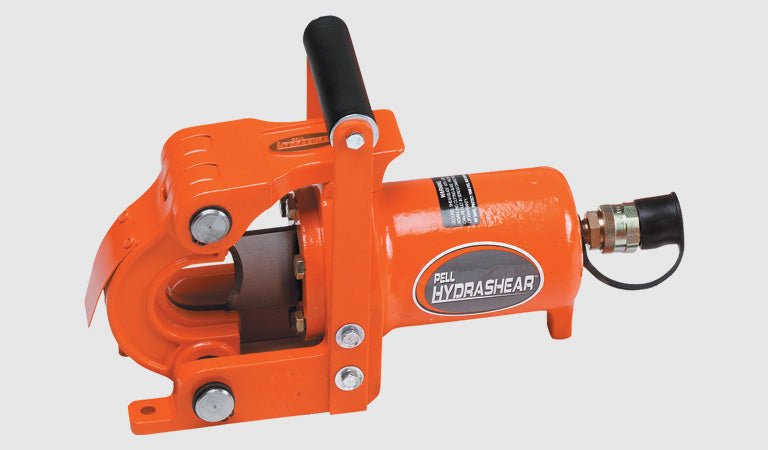

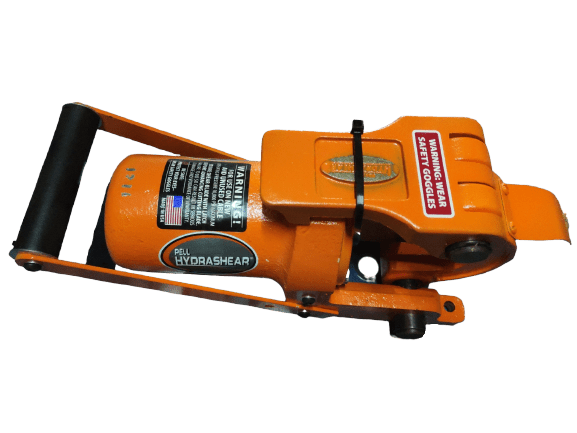

Morse Starrett POC1750-80 Cutter Head, Wire Rope, Hydraulic, Cap. 1 3/4" Diameter
Original price
$3,631.25
-
Original price
$3,631.25
Original price
$3,631.25
$3,631.25
-
$3,631.25
Current price
$3,631.25
Cutter Head, Wire Rope, Hydraulic, Cap. 1.3/4'' Diameter, MORSE STARRETT (POC1750-80)
* All Morse-Starrett and Pell Hydrashear wire rope cutters are designed for new and unused wire rope.

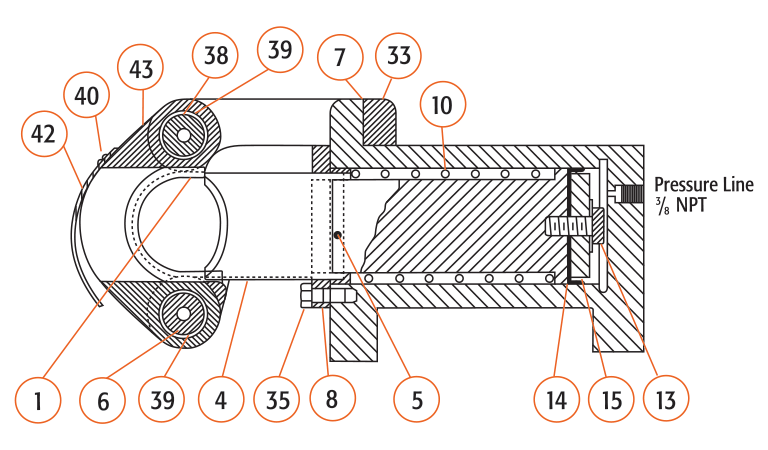

| Part no. | Description |
|---|---|
| 1 | Die set |
| 4 | Blade |
| 5 | Blade Pin |
| 6 | Hinge pin w/#39 |
| 7 | Ram |
| 8 | Ram collar |
| 10 | Retracting spring |
| 13 | Ram retainer screw |
| 14 | Cup leather |
| 15 | Cup retainer |
| 33 | Latch |
| 35 | Ram collar screw |
| 38 | Latch pin w/#39 |
| 39 | Snap ring |
| 40 | Guard screw |
| 42 | Guard plate |
| 43 | Shear blade holder |
| POC1750–62 | Repair Kit |
| POC1750–80 | Cutting head (1 3/4″ | 50 lbs) |
| POC1750–81 | Pump |
| POC1750–82 | Hose |
| POC1750–83 | Base Plate |
| POC1750–94 | Complete Unit (255 lbs) |
