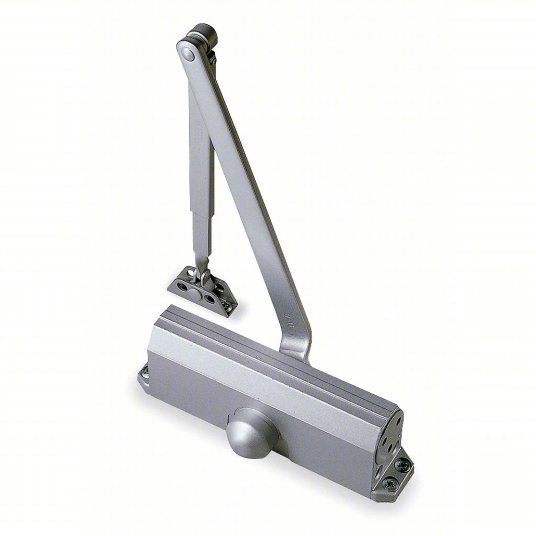

Norton 1601BFXAL Door Closer Parallel/Std/Top Frame Mounting Type, Grade 1 Heavy Duty

Door Closer, Norton 1601 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Non-Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed, ADA Compliant Yes, Finish Aluminum Painted, Arm Type Parallel, Regular, Color Gray, Exterior Door Width 48 in

Closer Mounting Style	Parallel, Regular, Top Jamb
Closer Performance	Heavy Duty
Closer Series	Norton 1600
Closer Type	Non Hold Open
Color	Gray
Finish	Aluminum Painted
Hand Orientation	Non-Handed
Interior/Exterior	Interior and Exterior
Hydraulic/Pneumatic	Hydraulic
Automatic/Manual	Manual
Material	Cast Aluminum
Projection from Wall	2 7/8 in
ADA Compliant	Yes
Standards	ANSI/BHMA A156.4 Grade 1 Certified; UL/cUL Listed; Americans with Disabilities Act (ADA); ANSI/BHMA Standard A117.1
Arm Type	Parallel, Regular
Max. Door Opening	180 Degrees
Fire Rating - Door Hardware	3 hr
Ligature Resistant	No
Series	1600
Type	Industrial
Features	1 3/8 in dia Piston, Staked Valves, Tri-Packed
Door Handing	Non-Handed
Green Certification or Other Recognition	Environmental Transparency Through EPD (Environmental Product Declaration)
Compatible Brand	NORTON RIXSON
Performance Grade	1
Door Weight - Maximum	250 lb
Product Type	Door Closer
Ligature-Resistant	Not Ligature-Resistant
Closer Cycles	25,000,000
UL Fire Rating	UL10C
ANSI/BHMA Finish	Aluminum Painted
Operation Style	Manual
Interior/Exterior Use	Interior/Exterior
Projection	2 7/8 in
Fire Rating	3 hr
Door Opening - Maximum	180 Degrees
Spring Type	Adjustable
