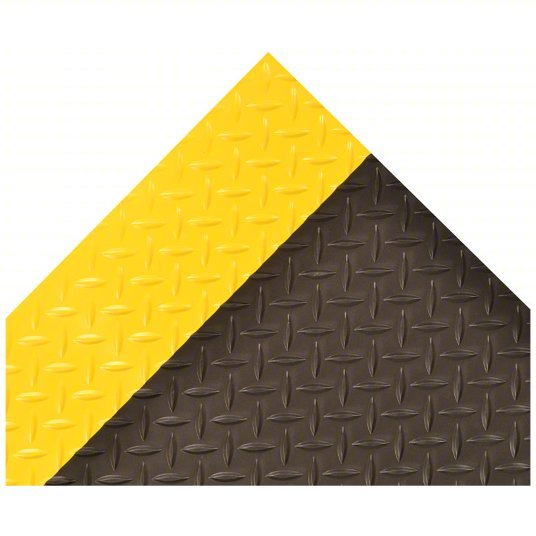

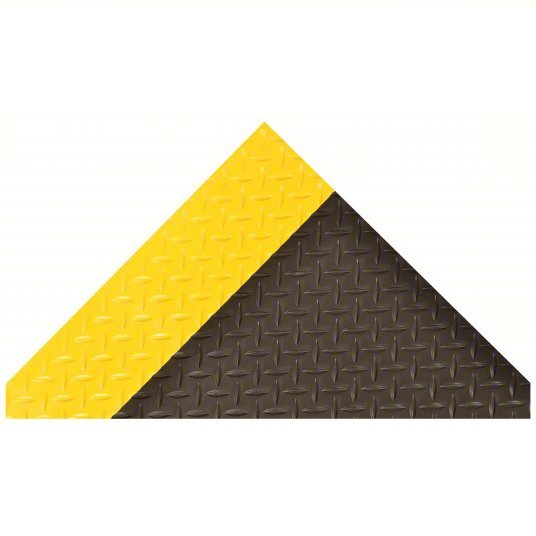

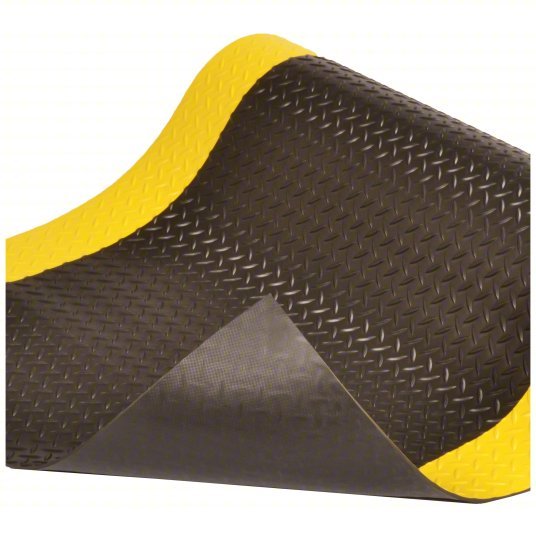

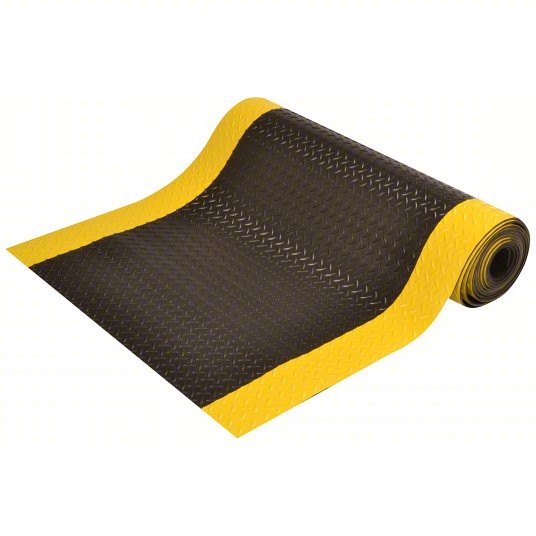

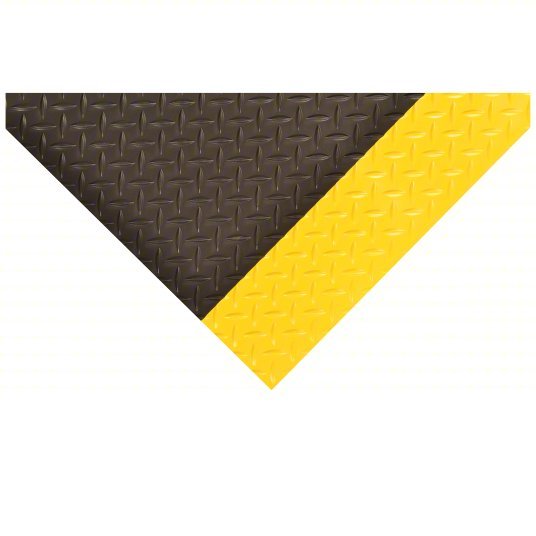

Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831
Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831

Notrax 831C0036BY-75 Switchboard Mat Type II Class 2, Diamond Plate, 3 ft x 75 ft, 1/4 in Thick, 17,000 V Max Volt, 831

$2,440.15 - $2,440.15
$2,440.15
$2,440.15 - $2,440.15
$2,440.15
Switchboard Mat, Antifatigue Material No, Anti-Slip Surface Yes, Application Distribution Boards, Generators, Switchgear, Transformers, ASTM D178 Type/Class Type II: Class 2, ATSM Dielectric Test Voltage 30,000 V, Backing Material Vinyl, Border Color Yellow, Color Black, Does Not Contain DMF, DOP, Heavy Metals, Ozone Depleting Substances, Silicone, Edge Style Straight, For Environment Food and Beverage, For Surface Type Dry Surfaces, Indoor/Outdoor Indoor, Maximum Voltage 17,000 V
Brake Fluid Resistant No
Mat Surface Pattern Diamond Plate
Mat Surface Material Vinyl
Item Switchboard Mat
Color Black
Mat Electrical Resistance Non-Conductive
Fire Resistant/Fire Retardant Not Fire Resistant or Retardant
Max. Use Voltage 17,000V AC
Antifatigue No
Thickness 1/4 in
Antimicrobial No
Standards ANSI/ASTM D178, Class 2
Oil Resistant No
Mat Backing Material Vinyl
Flame Resistant/Fire Retardant Not Flame Resistant or Fire Retardant
Series 831
NFSI High Traction Certified No
ASTM D178 Type Type II
Border Color Yellow
Maximum Voltage 17,000 V
ASTM D178 Type/Class Type II: Class 2
Surface Design Diamond Plate
Resistance Properties Electrically Insulated
Does Not Contain DMF, DOP, Heavy Metals, Ozone Depleting Substances, Silicone
ATSM Dielectric Test Voltage 30,000 V
Backing Material Vinyl
For Surface Type Dry Surfaces
Anti-Slip Surface Yes
Indoor/Outdoor Indoor
Antifatigue Material No
Surface Material Vinyl
Stripe Pattern Solid-Colored Borders

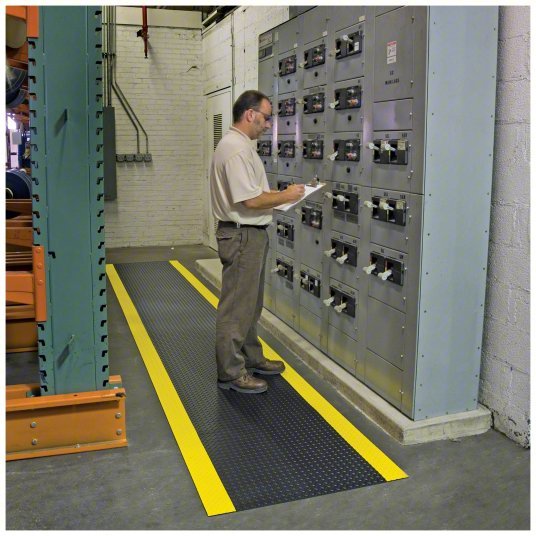

Application Distribution Boards, Generators, Switchgear, Transformers
ASTM D178 Class Class 2
For Environment Food and Beverage
Edge Style Straight
