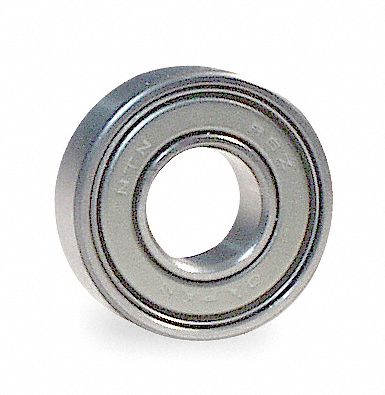

NTN 6003ZZC3/L627 Radial Ball Bearing, Double Shield, 17 mm Bore, 35 mm OD, 10 mm Wide
Original price
$32.44
-
Original price
$32.44
Original price
$32.44
$32.44
-
$32.44
Current price
$32.44
Radial Ball Bearing, Bearing Industry Number 6003, Bore Diameter 17 mm, Closure Double Shielded, Outer Ring Width 10 mm, Outside Diameter 35 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, Ball Material Alloy Steel, Cage Type Pressed, Dynamic Radial Load Capacity 7,550 N, Fillet Radius 0.3 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material SRI 2
| Bearing Type | Shielded |
|---|---|
| Single Row/Double Row | Single Row |
| Seal/Shield Type | Double Shielded |
| Cage Material | Steel |
| Temp. Range | -20 Degrees to 250 Degrees F |
| Shield Material | Metal |
| Static Load Capacity | 755 lb |
| Lubrication | SRI#2 Grease |
| Dynamic Load Capacity | 1,530 lb |
| Ball Material | Alloy Steel |
| Minimum Temperature | -40 Degrees C |
| Maximum Temperature | 120 Degrees C |
| Finish | Chrome Plated |
| Maximum Speed | 20,000 RPM |
| Static Radial Load Capacity | 3,350 N |
| Cage Type | Pressed |
| Number of Rows | One |
| Dynamic Radial Load Capacity | 7,550 N |
| Lubricant Material | SRI 2 |
| Includes Retaining Ring | No |
| Ring Material | Alloy Steel |
| Bearing Industry Number | 6003 |
| ISO Rating | Class 0 |
| Retaining Ring Groove | No |
| System of Measurement | Metric |
| Closure | Double Shielded |
| Type | Shielded |
| Country of Origin | Multiple |
