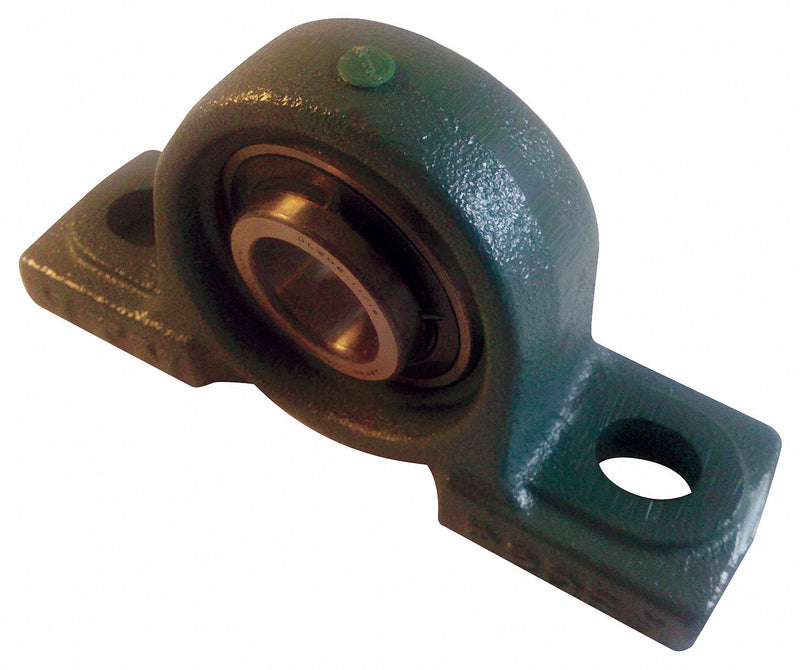

NTN UCPX12-207D1 Pillow Block Bearing, 2-7/16 in Bore, Cast Iron, Set Screw Locking, Ball Insert
Original price
$484.37
-
Original price
$484.37
Original price
$484.37
$484.37
-
$484.37
Current price
$484.37
Pillow Block Bearing, Base Height 1.299 in, Base Width 3.267 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 7/16 in, Bore Type Cylindrical, Center Height 2 63/64 in, Closure Open, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 7 63/64 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 5.944 in
| System of Measurement | Inch |
|---|---|
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Bearing Material | 52100 Chrome Steel |
| Bearing Insert Type | Ball |
| Bearing Insert Material | Alloy Steel |
| Series | Medium Duty |
| Closure | Open |
| Finish | Painted |
| Temp. Range | -20 Degrees to 250 Degrees F |
| Number of Mount Holes | 2 |
| Bearing Material Grade | 52100 |
| Static Radial Load Capacity | 8,992 lbf |
| Lubricant Material | NLGI #3 Equivalent |
| Seal Material | Nitrile Rubber |
| Minimum Temperature | -40 Degrees F |
| Bore Type | Cylindrical |
| Maximum Temperature | 250 Degrees F |
| Seal Type | Contact |
| Dynamic Radial Load Capacity | 12,927 lbf |
| Mount Type | Bolt-Through |
| Country of Origin | Japan |
