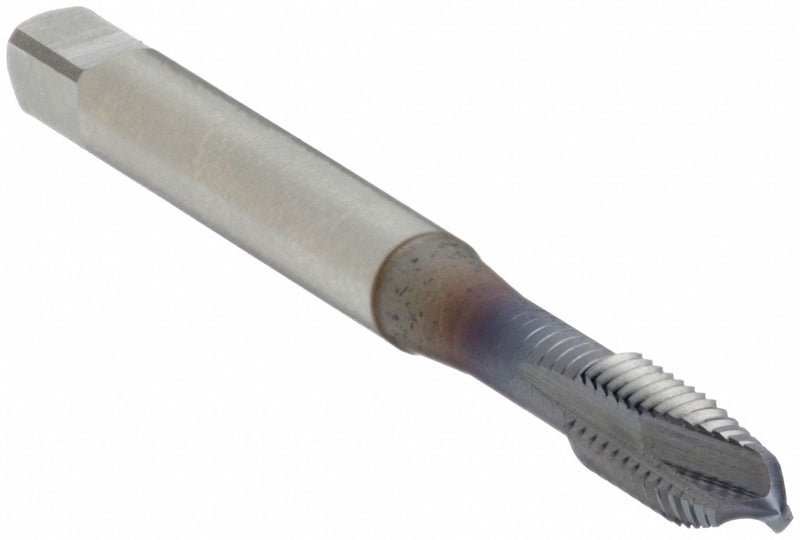

OSG 2817708 Spiral Point Tap, #6-32 UNC, H11, 2 Flute, Plug Chamfer, TiCN Coated Vanadium High Speed Steel

Name: OSG 2817708 Spiral Point Tap, #6-32 UNC, H11, 2 Flute, Plug Chamfer, TiCN Coated Vanadium High Speed Steel
Brand: OSG
SKU: RW33YA62
Price: 27.22 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8207.40.3000

Country of Origin: Mexico | Shipping Weight: 0.015 lbs

$27.22 - $27.22

$27.22

$27.22 - $27.22

$27.22

Spiral Point Tap, Thread Size #6-32, UNC, Overall Length 2 in, Vanadium High Speed Steel, TiCN, Right Hand, Thread Length 3/8 in, 75 Percent Thread Drill Size #36, Thread Limit H11, Number of Flutes 2

Shank Dia.	0.141"
Tap Dimension Type	Inch
Tap Size	#6
Overall Length	2 in
Tap Thread Size	#6-32
Thread Length	11/16"
55% Thread Drill Size	#32
Shank Length	1 5/16 in
Square Size	0.1090 in
65% Thread Drill Size	#34
75% Thread Drill Size	#36
Thread Size	#6-32
Drill Bit Size	0.1055 in, 0.1076 in, 0.1096 in, 0.1116 in, 0.1136 in
Size	#6
Pitch Diameter Limit	H11
Square Width	0.109 in
Shank Diameter	9/64 in
Square Length	0.109 in
Wire Rope Length	2 in
Length	2 in
Tap Material	High Speed Steel
Tap Chamfer	Plug
Tap Style	Spiral Point
Number of Flutes	2
Tap Finish	TiCN
Tap Thread Type	UNC
Standards	ANSI
Thread Direction	Right Hand
Tap Grouping	Tap
Series	280
Cutting Direction - Machining	Right Hand
Spiral Direction	Neutral
Primary Material Application ISO Code	P
Thread Standard	UNC
Primary Material Application	Steel
Extended Neck	Yes
Coolant Fed	Non-Coolant Through
Measurement System	Pipe
Secondary Material Application	Cast Iron, Hardened Steel, Stainless Steel, Tool and Die Steel
Threads per Inch	32
Secondary Material Application ISO Code	H, K, M, P
Thread Limit	H11
Shank Type - Machining	Straight
Helix Angle	0 Degrees
Number of Pieces	1
List Number	280
Shank Type	Square
Tap Application	Through Hole
Country of Origin	Mexico
