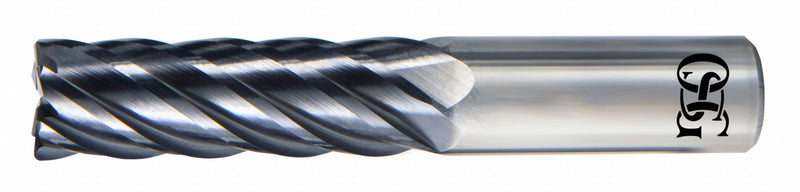

OSG VGM6-0098 Square End Mill, Carbide, EXO Coated, 6 Flute, 5/8" Mill Dia, 1-1/4" LOC, 3-1/2" OAL
UPC: | Harmonization / Schedule B : 8207.70.3030
Country of Origin: United States | Shipping Weight: 0.53 lbs
Original price
$285.87
-
Original price
$285.87
Original price
$285.87
$285.87
-
$285.87
Current price
$285.87
Square End Mill, 0.625 in Milling Dia., Carbide, EXO, Non-Coolant Through, Straight, Length of Cut 1.25 in, Overall Length 3 1/2 in, Shank Dia. 5/8 in
| Length of Cut | 1.25 in |
|---|---|
| Shank Dia. | 5/8 in |
| Overall Length | 3 1/2 in |
| Milling Dia. | 0.625 in |
| Wire Rope Length | 3 1/2 in |
| Length | 3 1/2 in |
| Number of Flutes | 6 |
| Single End/Double End | Single |
| End Mill Cutting Type | Center Cutting |
| Number of Coolant Holes | 0 |
| Measurement System | Inch |
| List Number | VGM6 |
| Series | HY-PRO(R) CARB VGM |
| For Material Hardness | 45 HRC |
| Secondary Material Application ISO Code | H |
| Finish - Machining | EXO |
| Coolant Fed | Non-Coolant Through |
| End Mill Application | Finishing |
| Secondary Material Application | Hardened Steel |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Material - Machining | Carbide |
| Material Grade - Machining | High Performance |
| Drilling Tool Configuration | Individual |
| Primary Material Application ISO Code | H, K, M, P, S |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Helix Angle | 37 Degrees |
| Shank Type - Machining | Straight |
| End Mill Style | Square |
| Max. Helix Angle | 37 Degrees |
| Flute Spacing | Variable |
| Country of Origin | United States |
