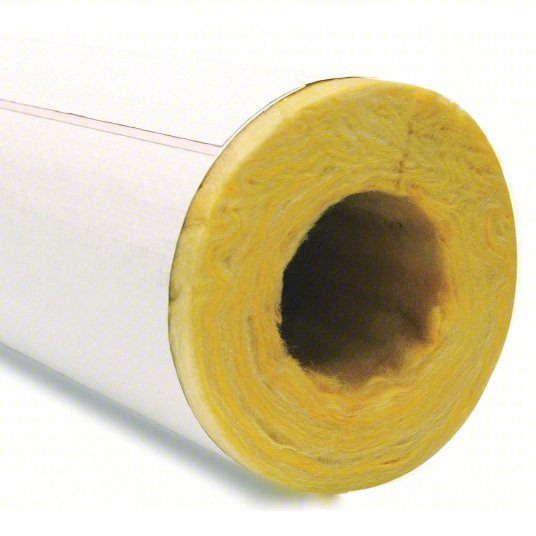

Owens 722596 Pipe Insulation Tube, Fiberglass, Slit with Adhesive and Flap, 1 in Thick, 3 ft Lg
Original price
$25.72
-
Original price
$25.72
Original price
$25.72
$25.72
-
$25.72
Current price
$25.72
Pipe Insulation, Insulation Material Fiberglass, Installation Style Slit with Adhesive and Flap, Inside Diameter 1 59/64 in, Wall Thickness 1 in, Overall Length 3 ft, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 1,000 Degrees F, Jacket Material ASJ Facing, Color Tan, R Value 6.4, Form Tube, For Copper Tube Size Not Applicable, For Pipe Size 1 1/2 in, Flame Spread Index 25, Smoke Developed Index 50, Foam Cell Type Not Applicable, Plenum Rating Plenum Rated
| Wall Thickness | 1 in |
| Material | Fiberglass |
| Insulation Nominal I.D. | 1 59/64 in |
| Approx. K Value | 0.16 |
| Insulation Type | Hinged with Self Sealing Lap |
| Wall Thickness - Insulation | 1 in |
| Insulation Temp. Range | 0 Degrees F to 1000 Degrees F |
| Pipe Insulation Item | Pipe Insulation |
| Insulation Approx. R Value | 6.4 |
| UPC | 047563710410 |
| Green Certification or Other Recognition | GREENGUARD Certified |
| Insulation Approx. K Value | 0.16 |
| Temp. Range | 0 Degrees to 1000 Degrees F |
| Green Environmental Attribute | Total VOC Emissions Less Than or Equal To 0.5 mg/m and Formaldehyde Emissions Less Than or Equal To 0.05 ppm |
| Insulation Body Material | Fiberglass |
| Insulation Max. Thickness | 1" |
| Approx. R Value | 6.4 |
| Color | Tan |
| Standards | UL 723, ASTM E84 or CAN/ULC S-102-M, GREENGUARD, ASTM C 547; ASTM C 1136, Types 1-IV; ASTM C 795, MIL-I-22344D, Nuclear Regulatory Commission Guide 1.36, Non-Metallic Thermal Insulation; MIL-I-24244C (Ships); U.S. Coast Guard Approval No. 164.009; CAN/CGSB-51.9 - Type I, Class 2; New York City MEA No. 344-83; NFPA 90A; ASTM C411; ASTM C302; ASTM E96 (Procedure A) |
| Includes | Pressure Sensitive Adhesive System |
| Smoke Developed Index | 50 |
| Installation Style | Slit with Adhesive and Flap |
| K Value | 0.16 BTU |
| R Value | 6.4 |
| Sealing Method | Adhesive Flap Seal |
| Green Environmental Properties | Formaldehyde Less Than or Equal to 0.05 ppm, Total VOC Less Than or Equal to 0.5 mg/cu m |
| Jacket Color | White |
| Tube Style | Hinged |
| Plenum Rating | Plenum Rated |
| Flame Spread Index | 25 |
