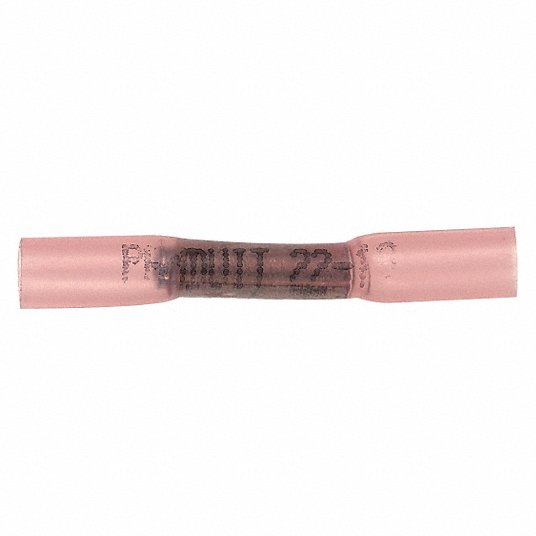

Panduit BSH18-Q Butt Splice Connector, 22 to 18 AWG, PK25
Original price
$85.15
-
Original price
$85.15
Original price
$85.15
$85.15
-
$85.15
Current price
$85.15
Splice Connector, Connection Type Crimp, Insulation Material Polyolefin, Insulation Color Red, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA C22.2 No. 65, UL 486C, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, Overall Length 1.45 in, Seam Style Brazed, Barrel Inside Diameter 0.17 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number CT-310
| Item | Splice Connector |
| Wire Range | 22 to 18 AWG |
| Insulation Type | Heat Shrink |
| Seam | Seamless |
| Connection Type | Crimp |
| Insulation Color | Red |
| Color Code | Red |
| Max. Voltage | 600 V |
| Max. Temp. | 230 Degrees F |
| Standards | CSA C22.2 No. 65, UL 486C |
| Connector Type | Butt Splice |
| Connection Material | Tin-Plated Copper |
| Number of Splices | 2 |
| Insulation Material | Polyolefin |
| Body Material | Copper |
| Seam Style | Brazed |
| Body Finish | Tin Plated |
| UL Standards | UL 486C |
| Compatible Installation Tool Model Number | CT-310 |
| Maximum Operating Temperature | 257 Degrees F |
| Minimum Operating Temperature | -65 Degrees F |
| Termination Style | Crimp |
| Special Features | Heat Shrink Polyolefin Sleeve with Hot Melt Adhesive Protects Against Moisture |
| For Wire Type | Stranded |
| Contact Material | Copper |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Includes Heat Shrink | Yes |
| Barrel ID | 0.17 in |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Standards Met | BSH18-Q |
| UL Temperature Rating (°C) | 125 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 0.6 |
| CSA Temperature Rating (°C) | 125 |
| Product Type | Butt Splice |
| Product Material | Copper |
| Product Color | Red |
| Product Name | Heat Shrink Butt Splice |
| Package Type | Bulk |
| Product Line | Pan-Term |
| Product Model | BSH18-Q |
| Product Series | BSH |
| Environmentally Friendly | Yes |
| UL Temperature Rating (°F) | 257 |
| CSA Temperature Rating (°F) | 257 |
| Sub Brand | Pan-Term® |
| Package Quantity | 25 |
