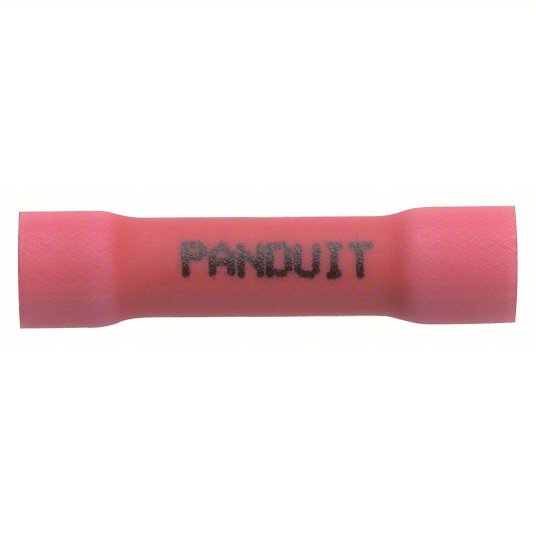

Panduit BSV18X-LY Splice Connector, Red, 1.030 in, PK50
Original price
$56.85
-
Original price
$56.85
Original price
$56.85
$56.85
-
$56.85
Current price
$56.85
Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Red, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA C22.2 No. 65, UL 486C, Contact Finish Tin, Contact Material Copper, Overall Length 1.03 in, Seam Style Brazed, Compatible Installation Tool Model Number CT- 2500/L, CT-100, CT-1550, CT-1551, CT-2300/ST, UP14ZLW, Insulation Type Vinyl, Package Quantity 50
| Item | Splice Connector |
| Wire Range | 22 AWG to 18 AWG |
| Insulation Type | Vinyl |
| Seam | Brazed |
| Connection Type | Crimp |
| Insulation Color | Red |
| Color Code | Red |
| Max. Voltage | 600 V |
| Max. Temp. | 221 Degrees F |
| Standards | CSA C22.2 No. 65, UL 486C |
| Connection Material | Tin-Plated Copper |
| Connector Type | Butt Splice |
| Seam Style | Brazed |
| UL Standards | UL 486C |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 Degrees F |
| Contact Material | Copper |
| Insulation Material | Vinyl |
| Contact Finish | Tin |
| Compatible Installation Tool Model Number | CT- 2500/L, CT-100, CT-1550, CT-1551, CT-2300/ST, UP14ZLW |
| Maximum Voltage (V) | 600 |
| Standards Met | BSV18X-LY |
| CSA Temperature Rating (°C) | 105 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Base Material | Copper |
| Barrel Type | Funnel Entry |
| Product Type | Butt Splice |
| UL Temperature Rating (°C) | 105 |
| Product Material | Copper |
| Product Color | Red |
| Product Line | Pan-Term |
| Product Name | Butt Splice |
| Note | BSV18X-LY replaces BSMV1BX-LY |
| CSA Temperature Rating (°F) | 221 |
| Sub Brand | Pan-Term® |
| UL Temperature Rating (°F) | 221 |
