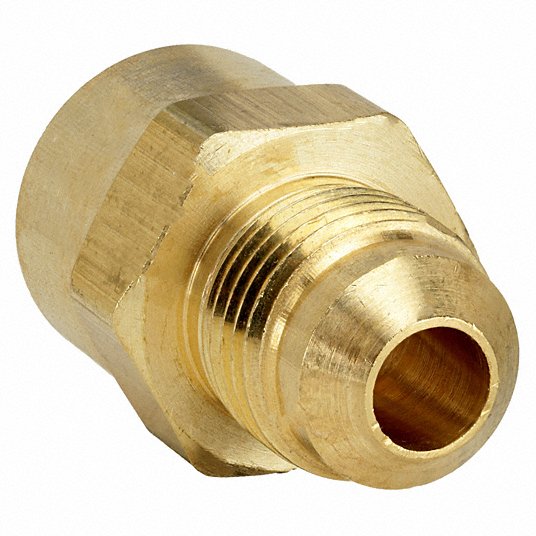

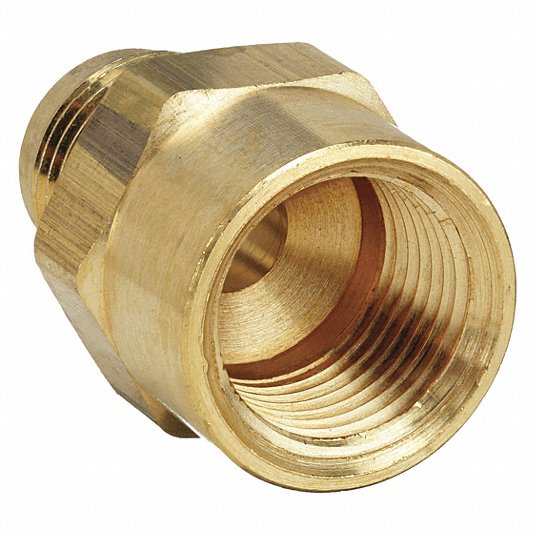

Parker 46F-8-4 Flared Fitting Elbow 1/2 in OD x 1/4 in Pipe Fitting Size, Flared/Threaded, Brass, 10 PK

Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application Natural Gases, LP Gases, Fitting Side A Connection Type Inverted Flare, Fitting Side B Connection Type FNPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Thread Size 3/4 In.-16, Hex Size 3/4 in, Maximum Operating Pressure 750 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 1 3/8 in, Specific Fitting Shape Straight Adapter, Standards SAE J512, SAE J513

Tube Fitting Material	Brass
Flare Type	45 Degrees
Specific Fitting Shape	Straight Adapter
Pipe Fitting Connection Type	Flare x FNPT
Basic Pipe Fitting Material	Metal
Basic Pipe Fitting Shape	Adapter
Max. Pressure	450 to 2800 psi
Specific Pipe Fitting Shape	Adapter
Temp. Range	-65 Degrees To 250 Degrees F
Maximum Operating Pressure	750 psi
Fitting Side B Connection Type	FNPT
Standards	SAE J512, SAE J513
Minimum Operating Temperature	-65 Degrees F
Fitting Material	Brass
Fitting Side A Connection Type	Inverted Flare
Flare Angle	45 Degrees
Application	Natural Gases, LP Gases
Maximum Operating Temperature	250 Degrees F
Compatible Tube Material	Aluminum, Brass, Copper, Steel
Fitting Shape	Straight
Operating Pressure - Maximum	750 psi
Operating Temperature - Maximum	250 Degrees F
For Media Type	Gases
Operating Temperature - Minimum	-65 Degrees F
Material Grade	CA360
Product Type	Flared Fitting Adapter
Fitting Side 2 Connection Type	FNPT
Connector Type	Adapter
Fitting Features	Rigid
Fitting Side 1 Connection Type	Flared
