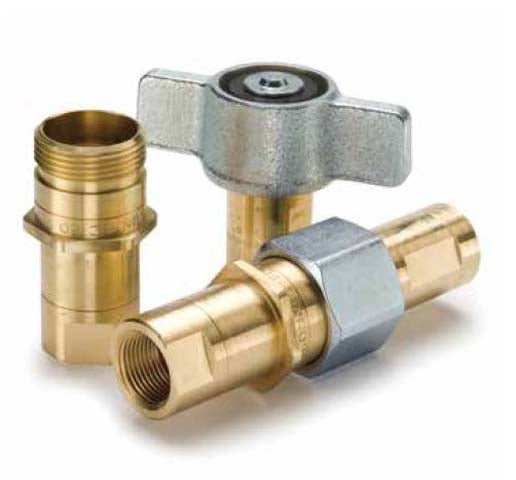

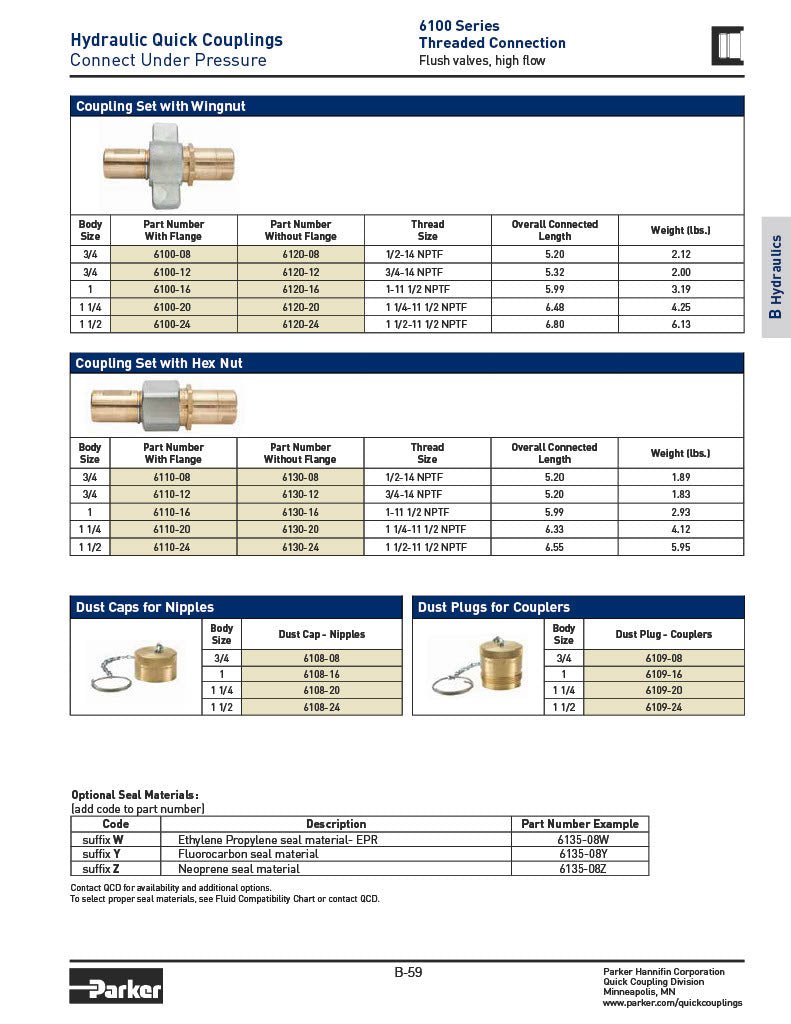

Parker 6100-24 6100 Series 1-1/2Coupler & Nipple Assy
Parker’s 6100 Series is a thread-to-connect low spill coupling that can be used in a wide range of industrial applications where high flow connected under pressure is required. Complete set.
- Material: Steel
- Body Size: 1 1/2 Inch
- Max Pressure: 2500 PSI (170 bar)
- Thread 1: 1 1/2 NPTF
- Quick Coupler Type: Hydraulic Connect Under Pressure
- Series: 6100
- Thread 1 Type: NPTF
- Configuration Type: Female NPTF
- Max Pressure Range: 2000 to 2999 PSI ( 138 to 207 bar)
- Inch/Metric: Inch
- Parker Group: Fluid Connector
- Parker Division: Quick Coupling
- Application: Hydraulic

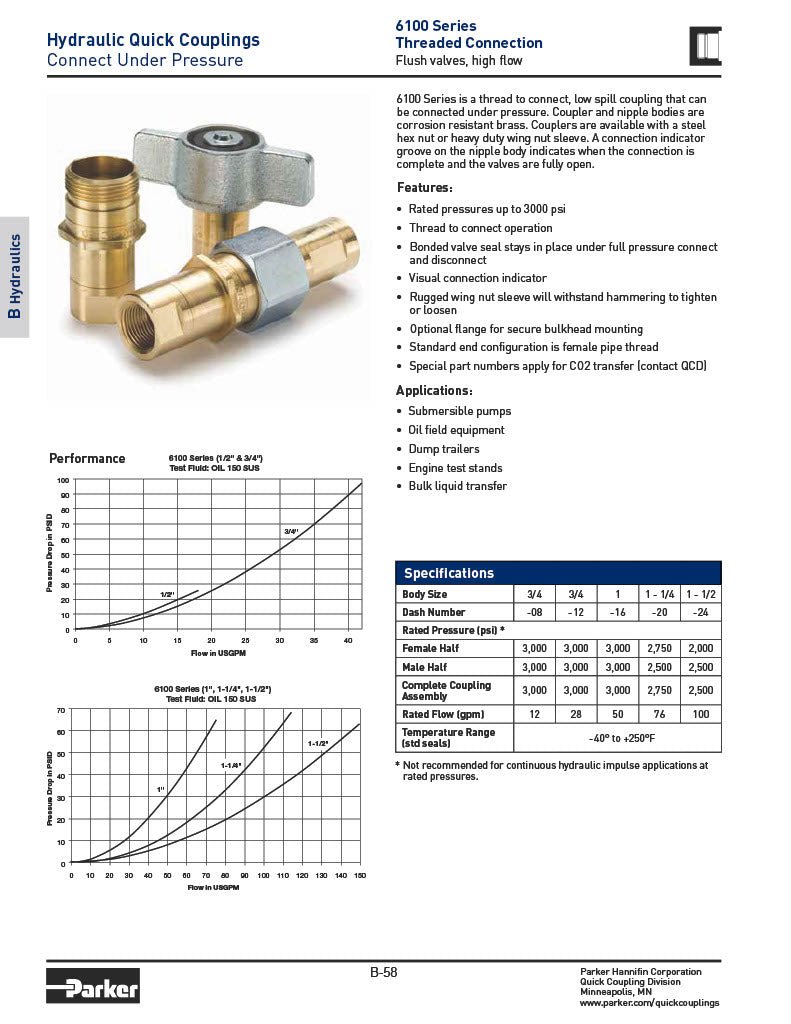

6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body indicates when the connection is complete and the valves are fully open.
Features:
• Rated pressures up to 3000 psi B Hydraulics
• Thread to connect operation Performance 100 90 80 Pressure Drop in PSID 70 60 50 40 30 20 10 6100 Series (1/2" & 3/4") Test Fluid: OIL 150 SUS 3/4" 1/2"
• Bonded valve seal stays in place under full pressure connect and disconnect • Visual connection indicator
• Rugged wing nut sleeve will withstand hammering to tighten or loosen
• Optional flange for secure bulkhead mounting
• Standard end configuration is female pipe thread
• Special part numbers apply for CO2 transfer (contact QCD)
Applications:
• Submersible pumps
• Oil field equipment
• Dump trailers
• Engine test stands
• Bulk liquid transfer
