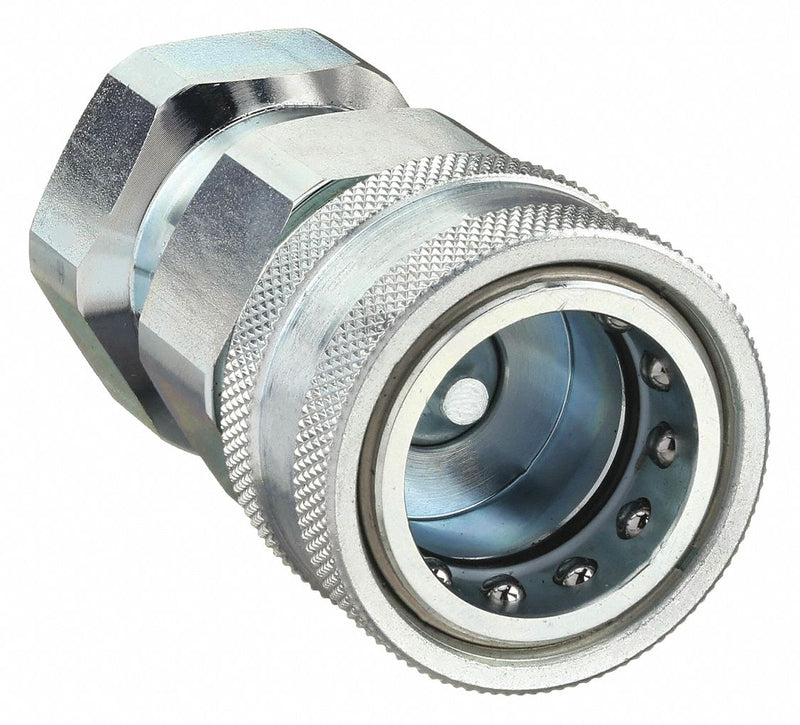

Parker 6601-12-10 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve
UPC: | Harmonization / Schedule B : 8481.20.0050
Country of Origin: United States | Shipping Weight: 0.8 lbs
Original price
$122.77
-
Original price
$122.77
Original price
$122.77
$122.77
-
$122.77
Current price
$122.77
Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45.42 lpm
| Thread Size | 3/4"-14 |
|---|---|
| Length | 2-7/8" |
| Coupler Thread Size | 3/4"-14 |
| Coupler Body Size | 1/2" |
| Overall Length | 2 7/8 in |
| Coupling Size | 1/2 in |
| Max. Outside Dia. | 1 1/2 in |
| Wire Rope Length | 2 7/8 in |
| Body Material | Steel |
| Seal Material | Buna-N |
| Coupling Locking Type | Sleeve |
| Max. Pressure | 4000 psi |
| Connection Type | Threaded |
| For Use With | ISO 7241-1 Series A Nipple |
| Sleeve Material | Steel |
| Series | 6600 |
| Coupler Body Material | Steel |
| Locking Mechanism | Ball |
| Coupler Flow Rate | 12.0 gpm |
| Quick Coupler Type | Hydraulic Coupler Body |
| Parker Interchange | 6601-12-10 |
| Coupler Connection Type | FNPT |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Valve Design | Poppet |
| Bearing Material | Stainless Steel |
| Coupler Interchange Type | ISO 7241-1 Series A |
| Standards | ISO 7241-1 Series A |
| Coupler Finish | Zinc Plated |
| Fitting Type | Female NPTF |
| Includes Bearing | Yes |
| Hose Fitting Gender | Female |
| Max. Flow Rate | 45.42 lpm |
| Coupling Component | Socket |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Valve Type | Poppet |
| Finish/Coating | Plain |
| Snap-Tite Interchange | 61C8-12F |
| Max. Working Pressure @ 70 F | 4,000 psi |
| Country of Origin | United States |
