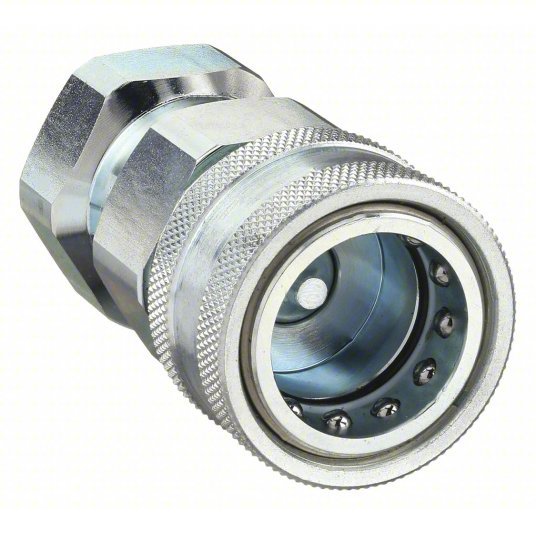

Parker 6601-4-4 Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1/4"-18 Thread Size, 6600 Series
Original price
$47.42
-
Original price
$47.42
Original price
$47.42
$47.42
-
$47.42
Current price
$47.42
Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 11.36 lpm
| Quick Coupler Type | Hydraulic Coupler Body |
| Coupler Interchange Type | ISO 7241-1 Series A |
| Connection Type | NPTF |
| Coupler Flow Rate | 3.0 gpm |
| Max. Pressure | 5000 psi |
| Coupler Body Material | Steel |
| Sleeve Material | Steel |
| Coupler Finish | Zinc Plated |
| Series | 6600 |
| Body Material | Steel |
| Coupling Locking Type | Sleeve |
| Bearing Material | Stainless Steel |
| Parker Interchange | 6601-4-4 |
| Standards | ISO 7241-1 Series A |
| For Use With | ISO 7241-1 Series A Nipple |
| Seal Material | Nitrile |
| Valve Design | Poppet |
| Locking Mechanism | Ball |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Coupler Connection Type | FNPT |
| Hansen Interchange | HA-15211-00 |
| Includes Valve | Yes |
| Includes Bearing | Yes |
| Fitting Type | Female NPTF |
| Snap-Tite Interchange | 61C4-4F |
| Max. Working Pressure @ 70 F | 5,000 psi |
| Finish/Coating | Plain |
| Safeway Interchange | S565-2 |
| Includes Shut Off | Yes |
| Coupling Component | Socket |
| Max. Flow Rate | 11.36 lpm |
| Hose Fitting Gender | Female |
| Valve Type | Poppet |
