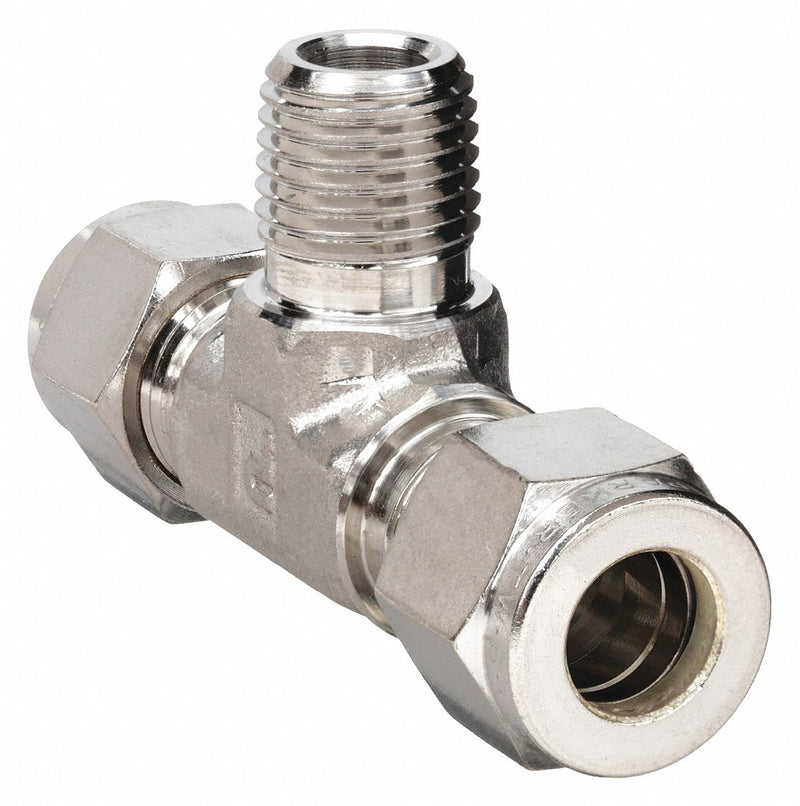

Parker 6MBT4N-316 Compression Tee Fitting, 3/8 in OD x 3/8 in OD x 1/4 in Pipe Fitting Size, Stainless Steel
Original price
$147.92
-
Original price
$147.92
Original price
$147.92
$147.92
-
$147.92
Current price
$147.92
Compression Tee Fitting, Application Gas, Oil, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, System of Measurement Imperial, Compatible Fitting Brands Parker A-LOK, Material Grade 316, Maximum Operating Pressure 6,600 psi, Maximum Operating Temperature 649 Degrees C, Overall Length 2 13/32 in
| Tube Size | 3/8 in |
|---|---|
| Pipe Size - Pipe Fitting | 1/4 in |
| Pipe Size (Fittings) | 1/4" |
| Hex Size | 5/8 in |
| Fitting Side A Tube Outer Diameter | 3/8 in |
| Fitting Side C Pipe Size | 1/4 in |
| Fitting Side B Tube Outer Diameter | 3/8 in |
| Overall Length | 2 13/32 in |
| Thread Size 1 | 3/8"-18 |
| Fitting Side 2 Tube Outer Diameter | 3/8 in |
| Fitting Side 1 Tube Outer Diameter | 3/8 in |
| Fitting Side 3 Pipe Size | 1/4 in |
| Wire Rope Length | 2 13/32 in |
| Length | 2 13/32 in |
| MFR # | 6MBT4N-316 |
| Zoro # | G1355794 |
| UPC # | - |
| Country of Origin | United States |
| Tube Fitting Material | 316 Stainless Steel |
| Specific Fitting Shape | Adapter Tee |
| Fitting Connection Type | Compression x MNPT |
| Pipe Fitting Connection Type | Compression x MNPT |
| Specific Pipe Fitting Shape | Branch Tee |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Standards | ASME SA-182, BS970 316-S31, DIN 4401 |
| Temp. Range | -425 Degrees to 1200 Degrees F |
| Material Grade | 316 |
| Application | Gas, Oil |
| Maximum Operating Pressure | 6,600 psi |
| Minimum Operating Temperature | 255 Degrees C |
| Maximum Operating Temperature | 649 Degrees C |
| Fitting Side A Connection Type | Compression |
| System of Measurement | Imperial |
| Resistance Properties | Corrosion-Resistant |
| Compatible Fitting Brands | Parker A-LOK |
| Fitting Side B Connection Type | Compression |
| Fitting Side C Connection Type | MNPT |
| Fitting Material | Stainless Steel |
| Fitting Shape | Tee |
| For Media Type | Gases, Oils |
| Operating Temperature - Maximum | 1,200 Degrees F |
| Connector Type | Adapter |
| Fitting Side 3 Connection Type | MNPT |
| Operating Temperature - Minimum | 491 Degrees F |
| Precleaned Type | Cleaned |
| Fitting Features | Rigid |
| Operating Pressure - Maximum | 6,600 psi |
| Fitting Side 2 Connection Type | Compression |
| Fitting Side 1 Connection Type | Compression |
| Country of Origin | USA (subject to change) |
