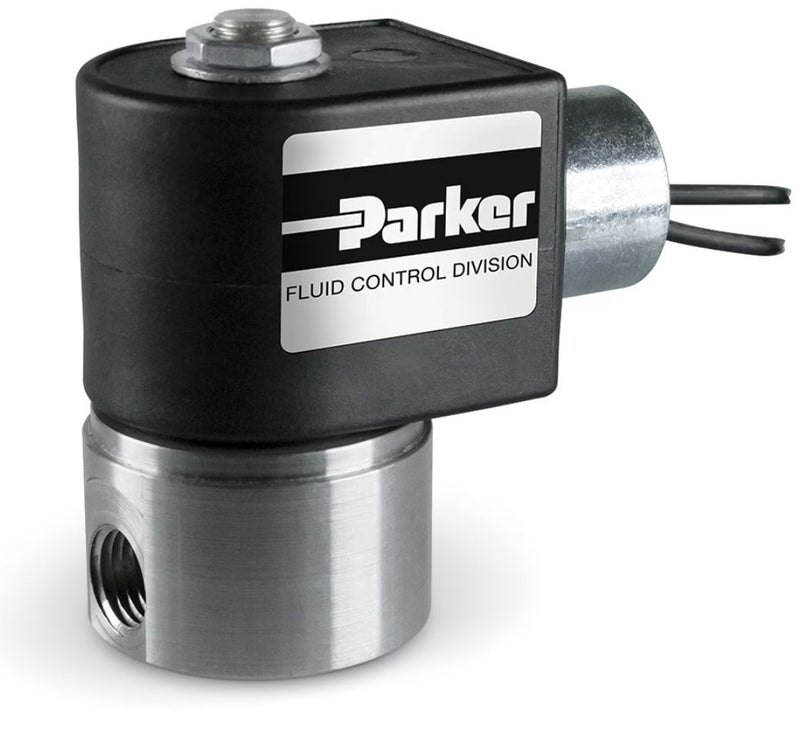

Parker 71215SN2MN00N0C111C1 2-Way Stainless Steel Valve 1/4 Inch
Original price
$238.45
-
Original price
$238.45
Original price
$238.45
$238.45
-
$238.45
Current price
$238.45
Parker's 2-Way Normally Closed 1/4 NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2 NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Leadtime: 45 Days ARO
| Orifice 1 Size | 1/8 inch |
| Port Size | 1/4 inch |
| Number of Ports | 2 |
| Valve Type | 2-Way |
| Power Consumption | 10 W (DC) |
| Body Material | Stainless Steel |
| Actuation Type | Direct Acting |
| Function | Normally Closed (NC) |
| Coil Type | 1/2" Conduit, 18" Leads |
| Product Series | 7000 Series |
| Coil Specifications Met | NEMA 4X |
| Port Type | NPT |
| Seal Material | NBR |
| Maximum Fluid Temperature | 185 °F |
| Division | Fluid Control Division |
| Minimum Pressure Differential | 0 psi |
| Weight | 1.2 LB |
| Flow Coefficient 1 | 0.28 Cv |
| Maximum Pressure Differential | 150 psi (DC) |
| Minimum Fluid Temperature | 0 °F |
| Media | Liquids and Gases |
| Input Voltage | 12.0 VDC |
| UOM | EACH |
