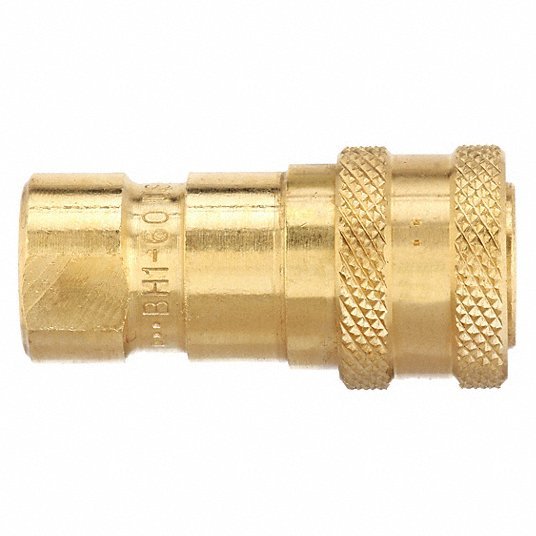

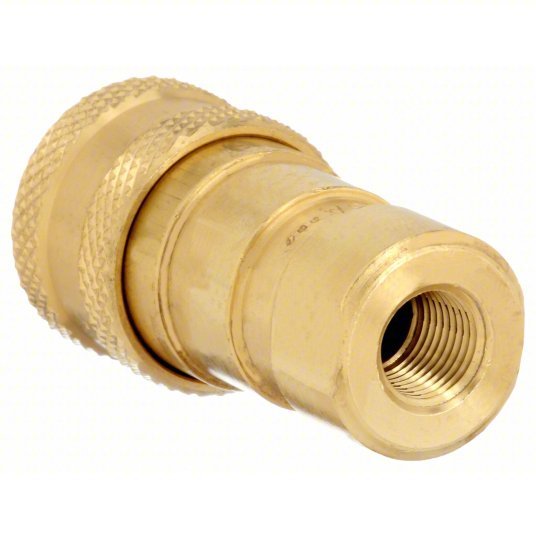

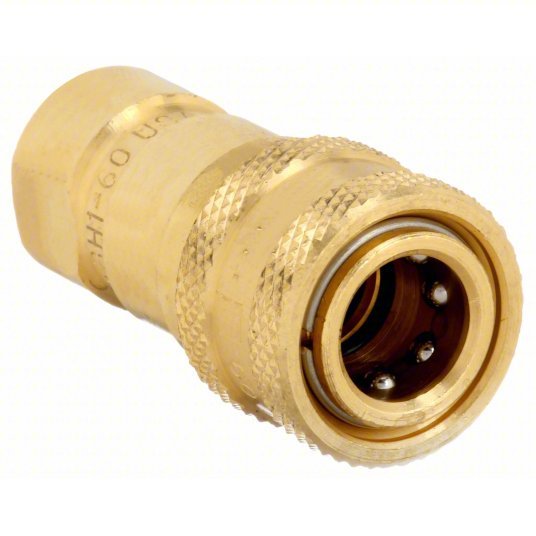

Parker BH1-60 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series
Original price
$42.65
-
Original price
$42.65
Original price
$42.65
$42.65
-
$42.65
Current price
$42.65
Hydraulic Quick Connect Hose Coupling, Socket, 60 Series, Brass, Coupling Size 1/8 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 3 lpm
| Item | Hydraulic Quick Connect Hose Coupling |
| Quick Coupler Type | Hydraulic Coupler Body |
| Coupler Interchange Type | ISO 7241-1 Series B |
| Connection Type | NPTF |
| Coupler Flow Rate | 0.8 gpm |
| Max. Pressure | 1000 psi |
| Coupler Body Material | Brass |
| Sleeve Material | Brass |
| Coupler Finish | Plain |
| Series | 60 |
| Body Material | Brass |
| Coupling Locking Type | Sleeve |
| Includes | Sleeve-Lock, Steam, Valve Actuator |
| Seal Material | Nitrile |
| Bearing Material | Stainless Steel |
| Standards | ISO 7241-1 Series B |
| Valve Design | Poppet |
| Locking Mechanism | Ball |
| Shut Off | double |
| Parker Interchange | BH1-60 |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Coupler Connection Type | FNPT |
| For Use With | ISO 7241-1 Series B Nipple |
| Hansen Interchange | B1-H11 |
| Max. Working Pressure @ 70 F | 3,000 psi |
| Includes Valve | Yes |
| Coupling Component | Socket |
| Fitting Type | Female NPTF |
| Safeway Interchange | BS105-1 |
| Hose Fitting Gender | Female |
| Max. Flow Rate | 3 lpm |
| Includes Bearing | Yes |
| Valve Type | Poppet |
| Finish/Coating | Plain |
| Snap-Tite Interchange | B72C2-2F |
| Includes Shut Off | Yes |
| Package Quantity | 1 |
