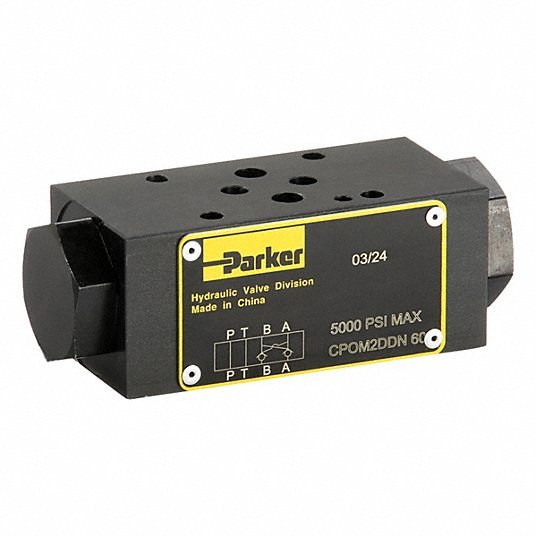

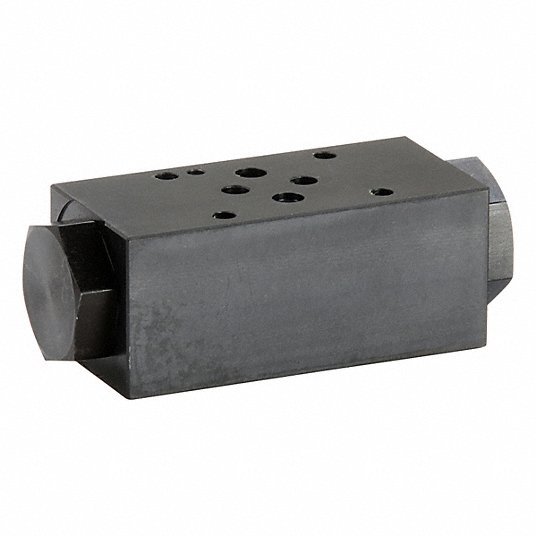

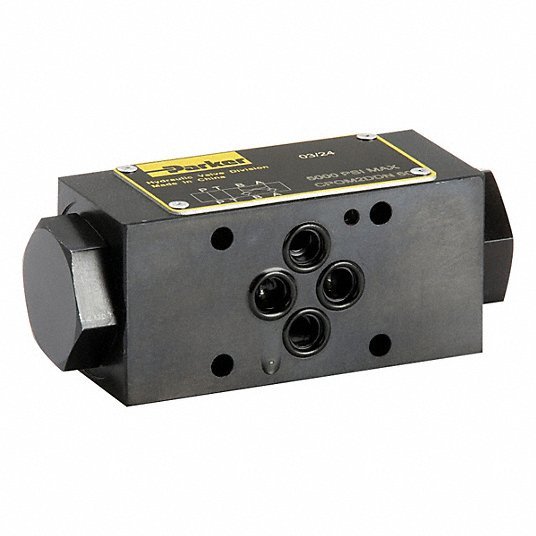

Parker CPOM2DDN Pilot Operated Check Valve 15.9 gpm Flow Rate - Max, 5,075 psi Max Pressure, D03 NFPA Size
Original price
$571.59
-
Original price
$571.59
Original price
$571.59
$571.59
-
$571.59
Current price
$571.59
Pilot Operated Check Valve, Flow Rate - Maximum 15.9 gpm, NFPA Size D03, Number of Positions -, Pressure - Maximum 5,075 psi, Valve Control Throttle Check, Valve Type Pilot, Series CPOM, Overall Height 1.57 in, Standards ISO 4401, NFPA D07, Overall Length 5.08 in, Overall Width 1.77 in, Seal Material NBR, Operating Temperature - Maximum 140 Degrees F
| For Use With | D03 Valves |
| Type | A and B Port |
| Valve Type - Hydraulic Valves | Hydraulic Pilot Operated Check Valve |
| Max. Flow - Hydraulic Valves | 14 gpm |
| Operation Type - Hydraulic Valves | A and B Port |
| Max. Pressure (PSI) | 5000 |
| Max. Pressure - Hydraulic Valves | 5,000 psi |
| Series | CPOM |
| GPM @ 3000 PSI | 14 |
| Seal Type | Nitrile O-Ring |
| Standards | ISO 4401, NFPA D07 |
| Operating Temperature - Minimum | -4 Degrees F |
| Circuit Section | Pilot |
| Valve Type | Pilot |
| Valve Control | Throttle Check |
| Body Material | Cast Iron |
| Includes Seals | Seals Included |
| Operating Temperature - Maximum | 140 Degrees F |
| Seal Material | NBR |
| Flow Rate - Maximum | 15.9 gpm |
| Pressure - Maximum | 5,075 psi |
