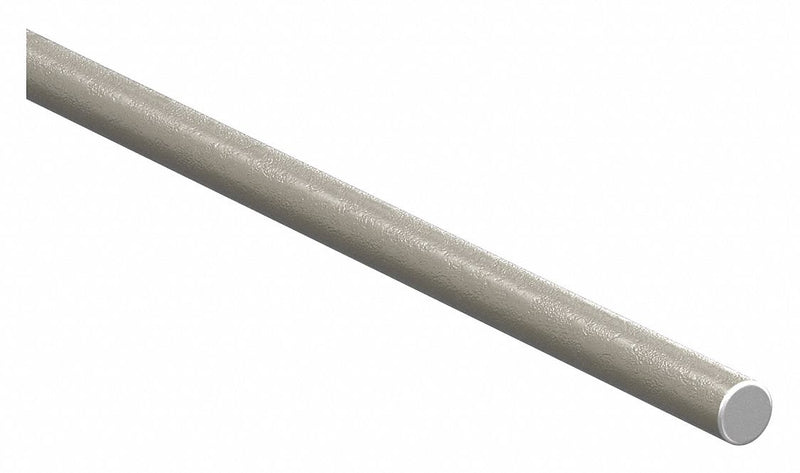

PBC Linear CC08-012.000 Linear Shaft, Solid Shaft, 1/2 in Dia, 12 in Lg, Aluminum, Ceramic Coated
Original price
$24.56
-
Original price
$24.56
Original price
$24.56
$24.56
-
$24.56
Current price
$24.56
Linear Shaft, System of Measurement Inch, Diameter 1/2 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 12 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in
| Material | Aluminum Alloy |
|---|---|
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| Finish | Ceramic Coated |
| Min. Surface Hardness | 70 RC |
| For Use With | Lined Bearings, Pillow Blocks |
| Type | Solid Shaft |
| System of Measurement | Inch |
| End Type | Plain Ends |
| Operating Temperature - Minimum | 0 Degrees F |
| Core Type | Solid |
| Surface Hardness - Minimum | 70 HRC |
| Weight Per Inch | 0.019 lb |
| Series | CC |
| Shaft Type | Solid Shaft |
| Operating Temperature - Maximum | 400 Degrees F |
| Country of Origin | United States |
