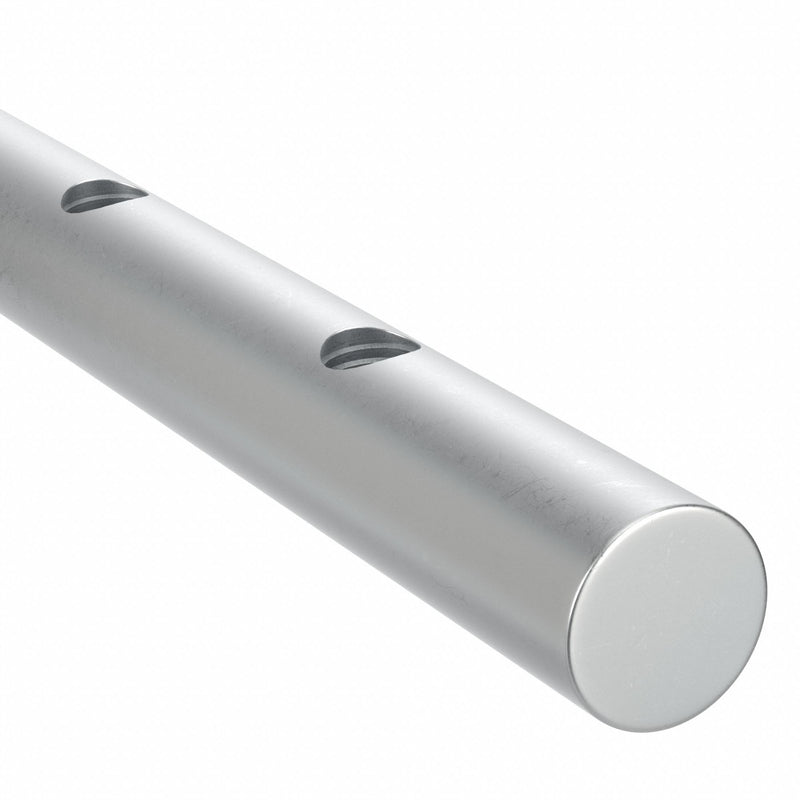

PBC Linear CCPDL32-012.000 Pre-Drilled Linear Shaft, Ceramic-Coated Aluminum, 2 in Dia, 12 in Lg
Original price
$191.38
-
Original price
$191.38
Original price
$191.38
$191.38
-
$191.38
Current price
$191.38
Linear Shaft, System of Measurement Inch, Diameter 2 in, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 12 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Mounting Hole Thread Size 1/2-13, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in, Mounting Hole Center to Center 8 in, Mounting Hole Center to Shaft End 4 in
| Material | Aluminum Alloy |
|---|---|
| Mounting Hole from Shaft End | 2 in |
| Finish | Ceramic Coated |
| Mounting Holes | Tapped |
| Mounting Hole Center to Center | 8 in |
| Temp. Range (F) | 0 Degrees - 400 Degrees F |
| For Use With | Lined Bearings, Pillow Blocks |
| Min. Surface Hardness | 70 RC |
| Type | Pre-Drilled Shaft |
| System of Measurement | Inch |
| End Type | Plain Ends |
| Surface Hardness - Minimum | 70 HRC |
| Weight Per Inch | 0.308 lb |
| Series | CCPDL |
| Core Type | Solid |
| Operating Temperature - Maximum | 400 Degrees F |
| Mounting Hole Type | Tapped |
| Operating Temperature - Minimum | 0 Degrees F |
| Shaft Type | Pre-Drilled Shaft |
| Mounting Hole Center to Shaft End | 4 in |
| Country of Origin | United States |
