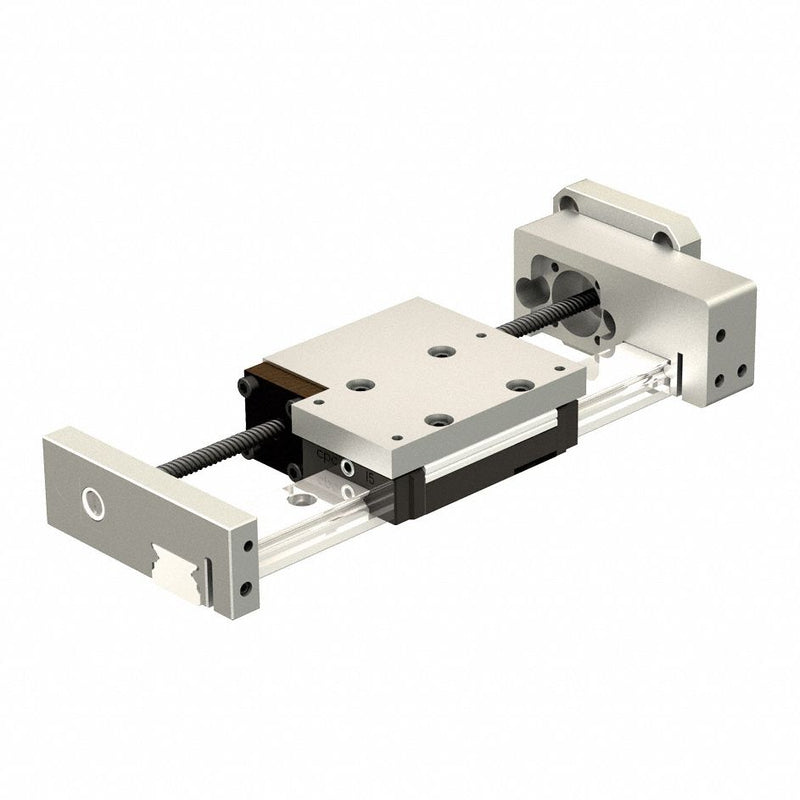

PBC Linear CSLSM06AGXR10Z-2SN-0200-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Ball Bearing, Stepper Motor
Original price
$1,230.12
-
Original price
$1,230.12
Original price
$1,230.12
$1,230.12
-
$1,230.12
Current price
$1,230.12
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 5,590 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
| Rail System Type | Profile Rail |
|---|---|
| Lubricant | Oil Based Lithium Soap Grease |
| Bearing Type | Ball |
| Motor Mount Option | None - Motor Mount Kit |
| Carriage Type | Profile Rail |
| Bearing Load Capacity | 5,590 N |
| Drive End Option | Shaft |
| Screw Type | Lead Screw |
| Drive Input Speed | 3,000 RPM |
| Voltage Rating | 24V |
| Number of Carriages Included | 1 |
| Carriage Bearing Moment Load Capacity | 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx) |
| Repeatability | 0.02 mm |
| Speed | 4,200 mm/sec |
| Cover Type | No Cover |
| Acceleration | 50 m/sq sec |
| Nut Type | Anti-Backlash |
| Motor Type | Stepper Motor |
| Travel Speed | 4,200 mm/sec |
| Country of Origin | United States |
