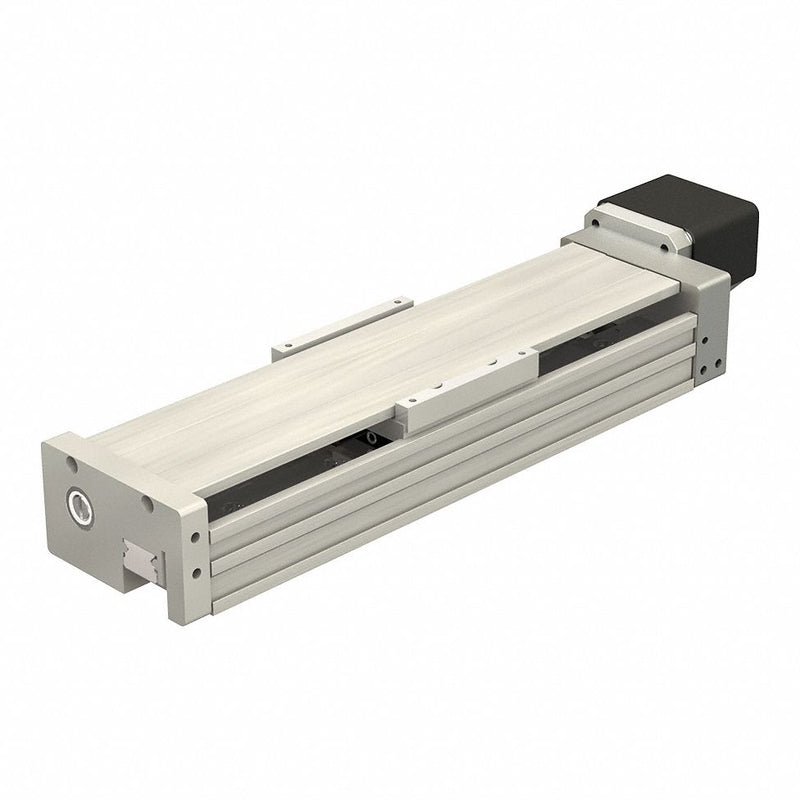

PBC Linear CSLSM10AGXR1ZF-2LT-0130-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 130 mm Rail, Ball Bearing, Stepper Motor
Original price
$1,489.75
-
Original price
$1,489.75
Original price
$1,489.75
$1,489.75
-
$1,489.75
Current price
$1,489.75
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 130 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
| Drive End Option | Shaft |
|---|---|
| Voltage Rating | 24V |
| Motor Mount Option | NEMA 17 Motor Mount |
| Bearing Load Capacity | 2,500 N |
| Speed | 4,200 mm/sec |
| Screw Type | Lead Screw |
| Cover Type | Tall |
| Lubricant | Oil Based Lithium Soap Grease |
| Number of Carriages Included | 1 |
| Rail System Type | Profile Rail |
| Carriage Bearing Moment Load Capacity | 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx) |
| Motor Type | Stepper Motor |
| Drive Input Speed | 3,000 RPM |
| Repeatability | 0.02 mm |
| Carriage Type | Profile Rail |
| Bearing Type | Ball |
| Nut Type | Anti-Backlash |
| Acceleration | 50 m/sq sec |
| Lubricant Type | Oil Based Lithium Soap Grease |
| Travel Speed | 4,200 mm/sec |
| Maximum Acceleration | 50 m/sq sec |
| Country of Origin | United States |
