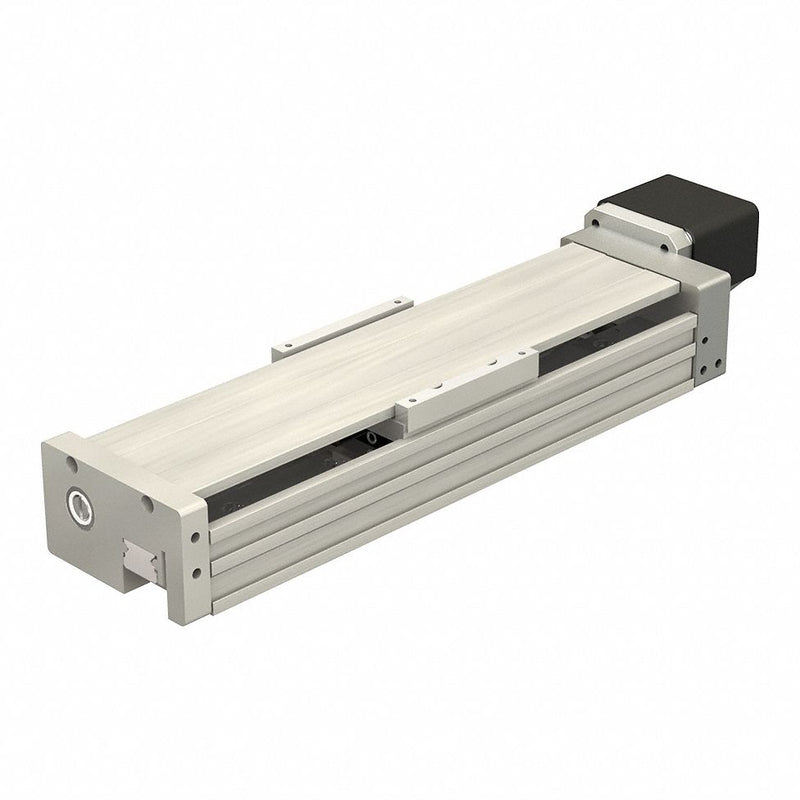

PBC Linear CSLSM10AGXR1ZF-2LT-1000-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 1,000 mm Rail, Ball Bearing, Stepper Motor
Original price
$2,980.73
-
Original price
$2,980.73
Original price
$2,980.73
$2,980.73
-
$2,980.73
Current price
$2,980.73
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 1,000 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
| Bearing Type | Ball |
|---|---|
| Motor Mount Option | NEMA 17 Motor Mount |
| Drive End Option | Shaft |
| Cover Type | Tall |
| Acceleration | 50 m/sq sec |
| Bearing Load Capacity | 2,500 N |
| Number of Carriages Included | 1 |
| Carriage Type | Profile Rail |
| Repeatability | 0.02 mm |
| Screw Type | Lead Screw |
| Nut Type | Anti-Backlash |
| Speed | 4,200 mm/sec |
| Motor Type | Stepper Motor |
| Drive Input Speed | 3,000 RPM |
| Carriage Bearing Moment Load Capacity | 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx) |
| Rail System Type | Profile Rail |
| Voltage Rating | 24V |
| Lubricant | Oil Based Lithium Soap Grease |
| Lubricant Type | Oil Based Lithium Soap Grease |
| Maximum Acceleration | 50 m/sq sec |
| Travel Speed | 4,200 mm/sec |
| Country of Origin | United States |
