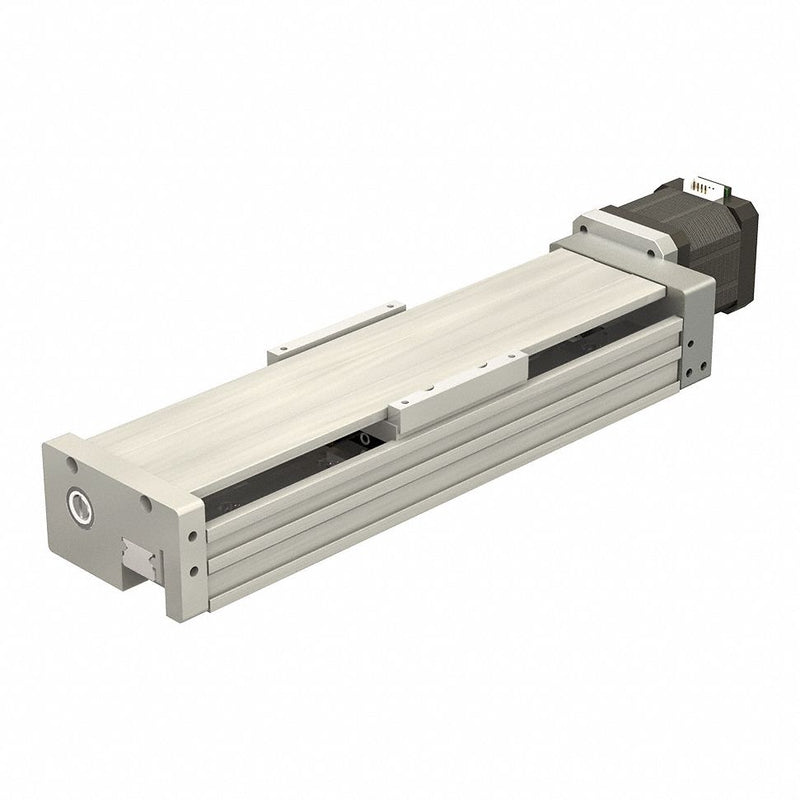

PBC Linear CSLSM10AGXR3A1-2LT-0130-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 130 mm Rail, Ball Bearing, Stepper Motor
Original price
$1,484.53
-
Original price
$1,484.53
Original price
$1,484.53
$1,484.53
-
$1,484.53
Current price
$1,484.53
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 130 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
| Acceleration | 50 m/sq sec |
|---|---|
| Number of Carriages Included | 1 |
| Repeatability | 0.02 mm |
| Voltage Rating | 24V |
| Speed | 4,200 mm/sec |
| Screw Type | Lead Screw |
| Carriage Type | Profile Rail |
| Lubricant | Oil Based Lithium Soap Grease |
| Cover Type | Tall |
| Carriage Bearing Moment Load Capacity | 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx) |
| Bearing Load Capacity | 2,500 N |
| Drive Input Speed | 3,000 RPM |
| Motor Mount Option | NEMA 17 Single Stack |
| Drive End Option | PBC Linear Integrated Motor Screw |
| Bearing Type | Ball |
| Rail System Type | Profile Rail |
| Motor Type | Stepper Motor |
| Travel Speed | 4,200 mm/sec |
| Lubricant Type | Oil Based Lithium Soap Grease |
| Maximum Acceleration | 50 m/sq sec |
| Nut Type | Anti-Backlash |
| Country of Origin | United States |
