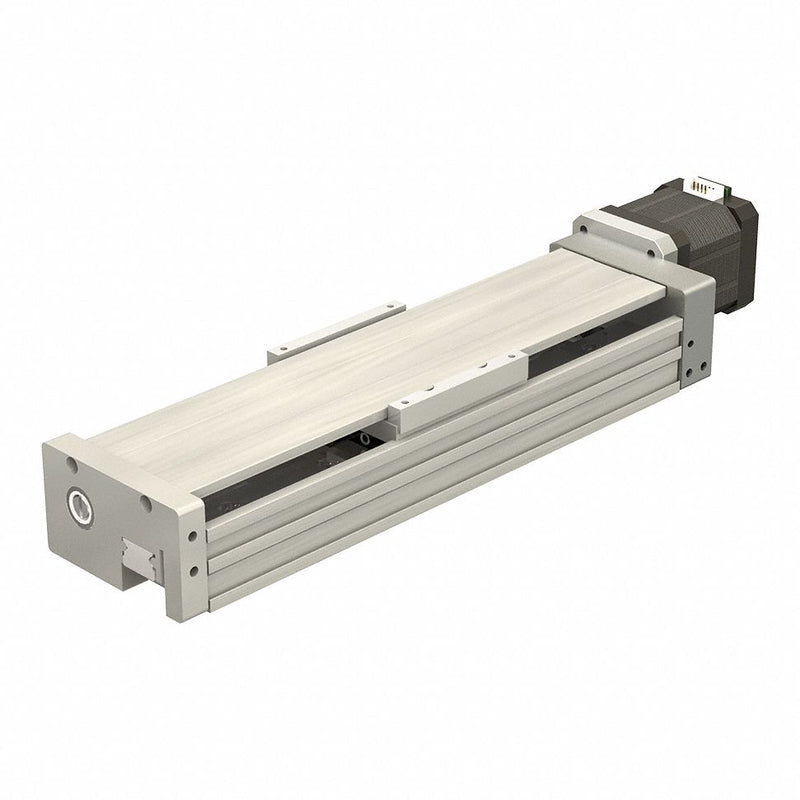

PBC Linear CSLSM10AGXR3A1-2LT-1000-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 1,000 mm Rail, Ball Bearing, Stepper Motor
Original price
$2,976.55
-
Original price
$2,976.55
Original price
$2,976.55
$2,976.55
-
$2,976.55
Current price
$2,976.55
Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 1,000 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
| Drive End Option | PBC Linear Integrated Motor Screw |
|---|---|
| Acceleration | 50 m/sq sec |
| Drive Input Speed | 3,000 RPM |
| Nut Type | Anti-Backlash |
| Carriage Type | Profile Rail |
| Rail System Type | Profile Rail |
| Repeatability | 0.02 mm |
| Lubricant | Oil Based Lithium Soap Grease |
| Bearing Type | Ball |
| Voltage Rating | 24V |
| Screw Type | Lead Screw |
| Motor Mount Option | NEMA 17 Single Stack |
| Bearing Load Capacity | 2,500 N |
| Cover Type | Tall |
| Number of Carriages Included | 1 |
| Motor Type | Stepper Motor |
| Carriage Bearing Moment Load Capacity | 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx) |
| Speed | 4,200 mm/sec |
| Travel Speed | 4,200 mm/sec |
| Lubricant Type | Oil Based Lithium Soap Grease |
| Maximum Acceleration | 50 m/sq sec |
| Country of Origin | United States |
