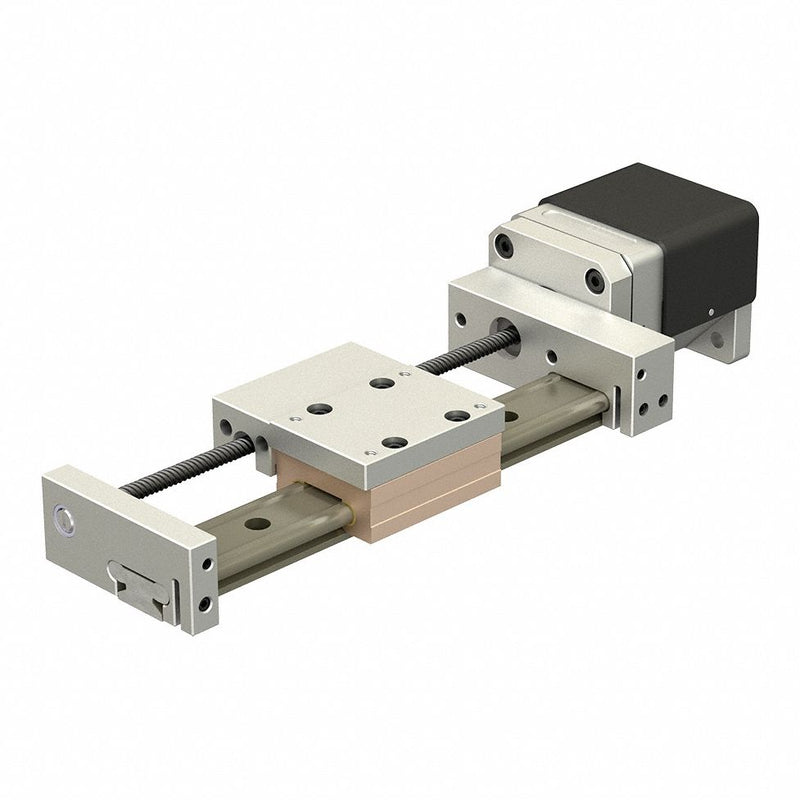

PBC Linear CSMR15D-000-0510-1ZF-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 510 mm Rail, Plain Bearing, Stepper Motor
Original price
$1,414.38
-
Original price
$1,414.38
Original price
$1,414.38
$1,414.38
-
$1,414.38
Current price
$1,414.38
Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 510 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 240 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
| Carriage Type | Plain Bearing |
|---|---|
| Screw Type | Lead Screw |
| Rail System Type | Gliding Surface Rail |
| Acceleration | 50 m/sq sec |
| Voltage Rating | 24V |
| Lubricant | Petroleum Based Grease |
| Number of Carriages Included | 1 |
| Motor Mount Option | NEMA 17 Motor Mount |
| Speed | 4,200 mm/sec |
| Carriage Bearing Moment Load Capacity | 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz) |
| Repeatability | 0.02 mm |
| Drive Input Speed | 2,000 RPM |
| Bearing Load Capacity | 240 N |
| Motor Type | Stepper Motor |
| Bearing Type | Plain |
| Nut Type | Anti-Backlash |
| Lubricant Type | Petroleum Based Grease |
| Cover Type | No Cover |
| Travel Speed | 4,200 mm/sec |
| Maximum Acceleration | 50 m/sq sec |
| Country of Origin | United States |
