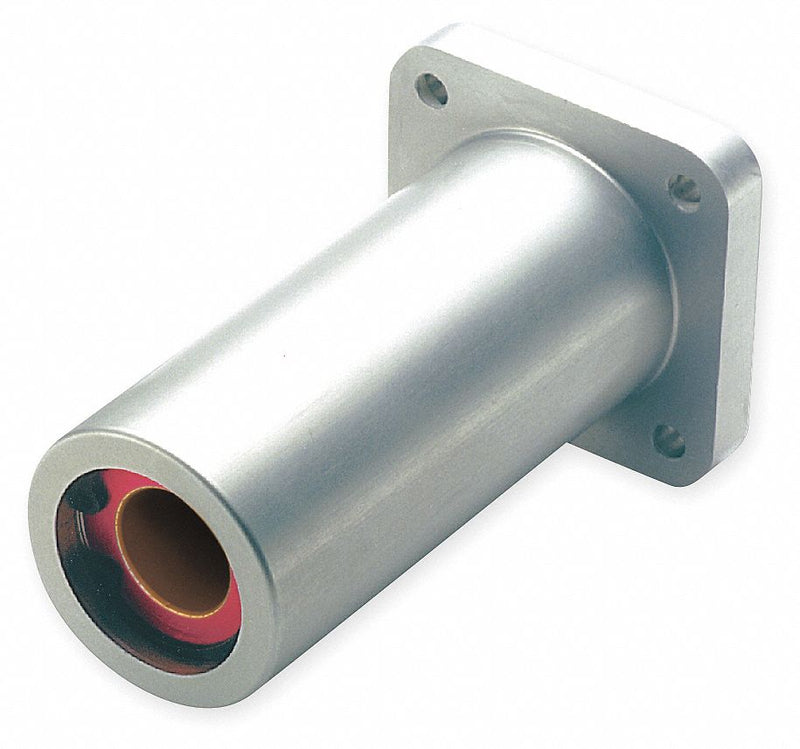

PBC Linear DFP12 Mounted Linear Bearing, Twin, Self-Aligning, 3/4 in Bore, Frelon Gold Liner
Original price
$413.59
-
Original price
$413.59
Original price
$413.59
$413.59
-
$413.59
Current price
$413.59
Mounted Linear Bearing, Inside Diameter 3/4 in, Outside Diameter 1 3/4 in, Flange Width 2.38 in, Overall Length 4 3/16 in, Dynamic Load Capacity 3,810 lbf, Flange Thickness 0.375 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 5,880 lbf, Steady State Speed 5 fps, Housing Style Twin, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F
| Material | Aluminum |
|---|---|
| Retaining Ring | External |
| Locking Type | Retaining Ring |
| Accelerated Speed | 14 fps |
| Static Load Capacity (N) | 5,880 lbf |
| Temp. Range (F) | 0 - 400 |
| Lubrication | Self Lubricating |
| Self-Alignment | Self-Aligning |
| Steady State Speed | 5 fps |
| Bearing Type | Plain |
| Dynamic Load Capacity (N) | 3,810 lbf |
| Liner | Frelon(TM) Gold |
| Static Load Capacity (Lb.) | 5,880 lb |
| Dynamic Load Capacity (Lb.) | 3,810 lb |
| Finish | Anodized |
| Type | Square Flanged |
| Series | Simplicity |
| System of Measurement | Inch |
| Housing Style | Twin |
| Maximum Operating Temperature | 400 Degrees F |
| Minimum Operating Temperature | -400 Degrees F |
| Dynamic Load Capacity | 3,810 lbf |
| Static Load Capacity | 5,880 lbf |
| Liner Material | Frelon (TM) Gold |
| Country of Origin | United States |
