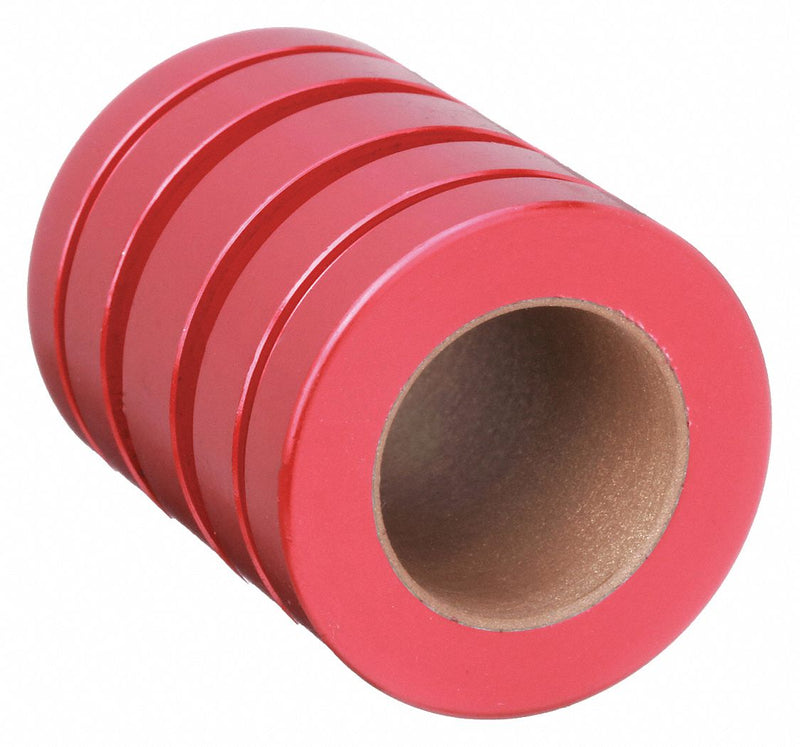

PBC Linear FL04 Standard Linear Bearing, 1/4 in Inside Dia, 3/4 in Lg, Frelon Gold, Precision
Original price
$42.02
-
Original price
$42.02
Original price
$42.02
$42.02
-
$42.02
Current price
$42.02
Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/4 in, Outside Diameter 1/2 in, Overall Length 3/4 in, Static Load Capacity 600 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FL, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.0001/+0.0002 in
| Type | Closed |
|---|---|
| Material | Aluminum |
| For Use With | Linear Motion Shafts |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Max. Pv | 20,000 lb/sq in-fpm |
| Static Load Capacity | 600 lbf |
| Liner | Frelon(TM) Gold |
| Self-Alignment | Yes |
| Lubrication | Self Lubricating |
| Bearing Type | Closed |
| Color | Red |
| Accelerated Speed | 14 Feet/Second |
| Between Grooves | 0.125 in |
| Running Clearance Class | Precision |
| System of Measurement | Inch |
| Static Load Capacity (N) | 600 lbf |
| Series | FL |
| Maximum Operating Temperature | 400 Degrees F |
| Minimum Operating Temperature | -400 Degrees F |
| Maximum PV | 20,000 lb/sq in-fpm |
| Self-Lubrication | Self-Lubricating |
| Country of Origin | United States |
