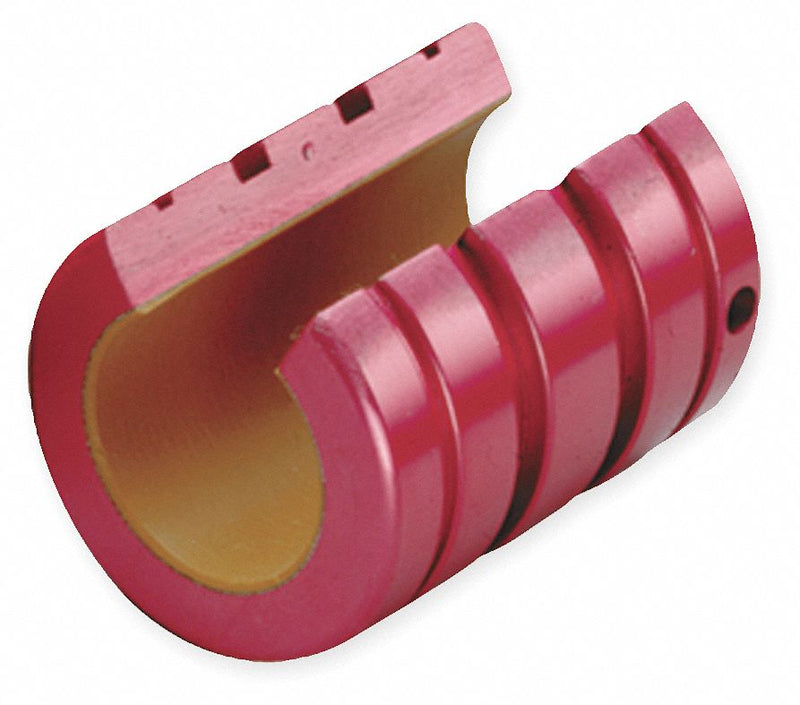

PBC Linear FLN08 Standard Linear Bearing, 1/2 in Inside Dia, 1 1/4 in Lg, Frelon Gold, Precision
Original price
$59.75
-
Original price
$59.75
Original price
$59.75
$59.75
-
$59.75
Current price
$59.75
Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/2 in, Outside Diameter 7/8 in, Overall Length 1 1/4 in, Static Load Capacity 1,950 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FLN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Open
| Type | Open |
|---|---|
| Material | Aluminum |
| Temp. Range | 0 Degrees to 400 Degrees F |
| For Use With | Support and Feather Rails |
| Max. Pv | 20,000 lb/sq in-fpm |
| Static Load Capacity | 1,950 lbf |
| Self-Alignment | Yes |
| Accelerated Speed | 14 Feet/Second |
| Bearing Type | Open |
| Slot Angle (Degrees) | 60 |
| Lubrication | Self Lubricating |
| Color | Red |
| Liner | Frelon(TM) Gold |
| Maximum Operating Temperature | 400 Degrees F |
| Running Clearance Class | Precision |
| Minimum Operating Temperature | -400 Degrees F |
| System of Measurement | Inch |
| Static Load Capacity (N) | 1,950 lbf |
| Series | FLN |
| Between Grooves | 0.25 in |
| Self-Lubrication | Self-Lubricating |
| Slot Angle | 60 Degrees |
| Maximum PV | 20,000 lb/sq in-fpm |
| Country of Origin | United States |
