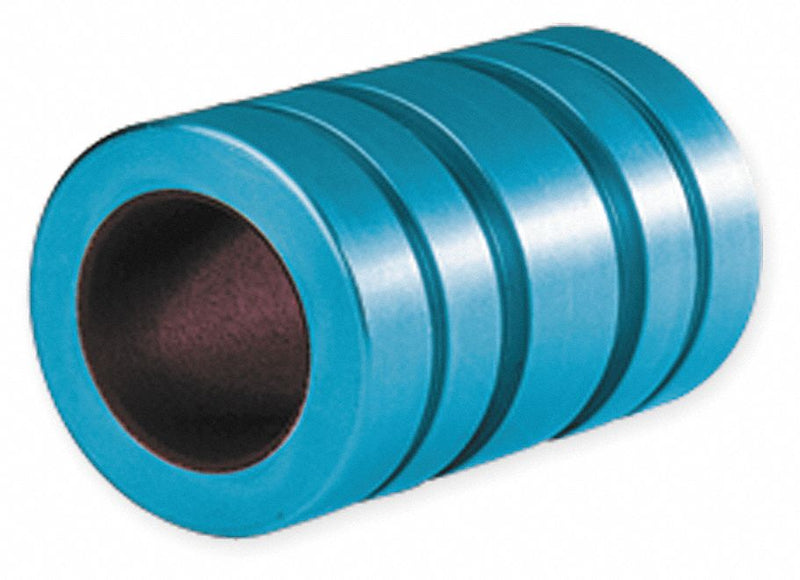

PBC Linear FM25 Standard Linear Bearing, 25 mm Inside Dia, 58 mm Lg, Frelon Gold, Precision
Original price
$99.57
-
Original price
$99.57
Original price
$99.57
$99.57
-
$99.57
Current price
$99.57
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 25 mm, Outside Diameter 40 mm, Overall Length 58 mm, Static Load Capacity 29,881 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.009/+0.096 mm
| Type | Closed |
|---|---|
| Material | Aluminum |
| Static Load Capacity | 29,881 N |
| Max. Pv | 20,000 lb/sq in-fpm |
| Temp. Range | 0 Degrees to 400 Degrees F |
| For Use With | Linear Motion Shafts |
| Between Grooves (mm) | 40 |
| Accelerated Speed | 14 Feet/Second |
| Self-Alignment | Yes |
| Liner | Frelon(TM) Gold |
| Color | Blue |
| Bearing Type | Closed |
| Lubrication | Self Lubricating |
| Maximum Operating Temperature | 400 Degrees F |
| Series | FM |
| Static Load Capacity (N) | 3,046 lbf |
| Minimum Operating Temperature | -400 Degrees F |
| Running Clearance Class | Precision |
| System of Measurement | Metric |
| Self-Lubrication | Self-Lubricating |
| Between Grooves | 40 |
| Maximum PV | 20,000 lb/sq in-fpm |
| Country of Origin | United States |
