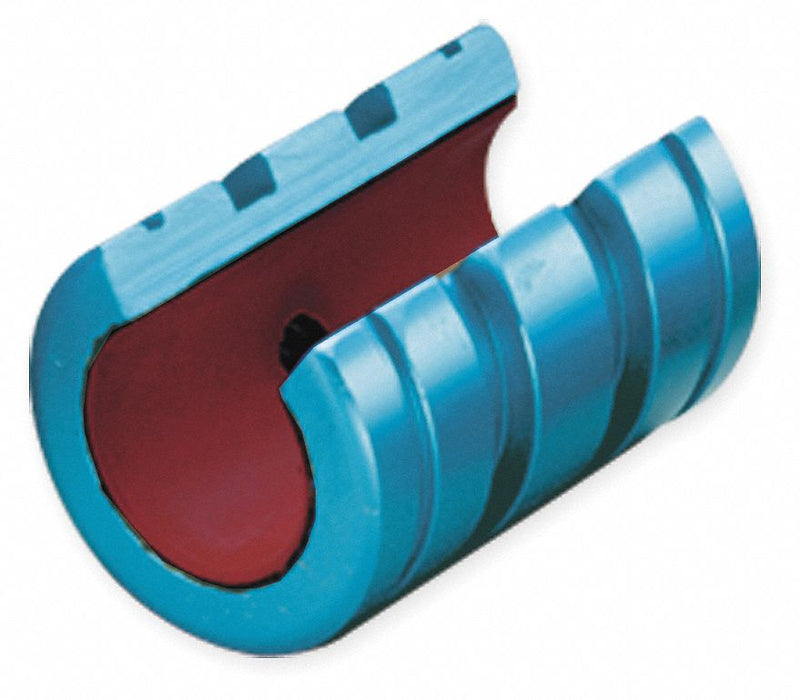

PBC Linear FMN05 Standard Linear Bearing, 5 mm Inside Dia, 22 mm Lg, Frelon Gold, Precision
Original price
$93.50
-
Original price
$93.50
Original price
$93.50
$93.50
-
$93.50
Current price
$93.50
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 5 mm, Outside Diameter 11.99 mm, Overall Length 22 mm, Static Load Capacity 2,276 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.008/+0.06 mm, Maximum PV 20,000 lb/sq in-fpm
| Type | Open |
|---|---|
| Material | Aluminum |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Max. Pv | 20,000 lb/sq in-fpm |
| For Use With | Support and Feather Rails |
| Static Load Capacity | 2,276 N |
| Between Grooves (mm) | 12 |
| Liner | Frelon(TM) Gold |
| Self-Alignment | Yes |
| Slot Angle (Degrees) | 60 |
| Color | Blue |
| Lubrication | Self Lubricating |
| Bearing Type | Open |
| Accelerated Speed | 14 Feet/Second |
| Series | FMN |
| Running Clearance Class | Precision |
| Minimum Operating Temperature | -400 Degrees F |
| Static Load Capacity (N) | 232 lbf |
| Maximum Operating Temperature | 400 Degrees F |
| System of Measurement | Metric |
| Self-Lubrication | Self-Lubricating |
| Between Grooves | 5 mm |
| Slot Angle | 60 Degrees |
| Maximum PV | 20,000 lb/sq in-fpm |
| Country of Origin | United States |
