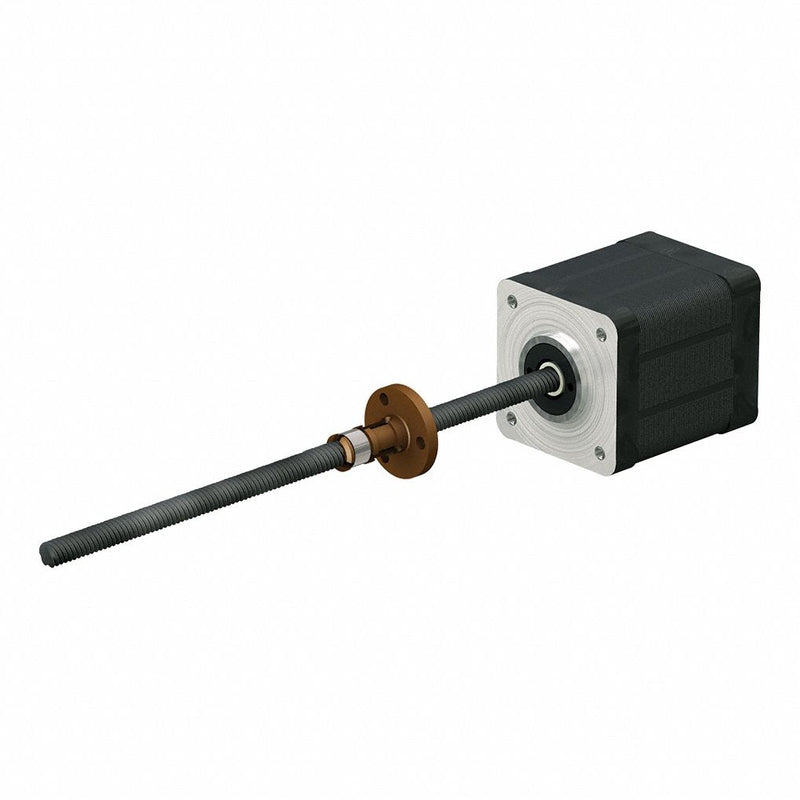

PBC Linear LSR0601T-0100-RCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 100 mm Lg
Original price
$411.69
-
Original price
$411.69
Original price
$411.69
$411.69
-
$411.69
Current price
$411.69
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Round, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 100 mm, Nut Length 22.2 mm, Nut Flange Diameter 25.4 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
| Left End Components | None |
|---|---|
| Nut Material | Stainless Steel |
| Screw Material | Stainless Steel |
| Coating Material | PTFE |
| Nut Type | Anti-Backlash |
| Lead Accuracy | 0.003 in/ft |
| Percent Efficiency | 39% |
| Screw Type | Lead Screw |
| Nut Shape | Round |
| Insulation Resistance | 100 Mohm |
| Nut Drag Torque | 0.0134 to 0.0164 Nm |
| Travel per Step | 0.005 in |
| Motor Type | Stepper Motor |
| Step Accuracy | +/-5% |
| Insulation Class | B |
| Rated Current | 0.4 A |
| Thread Direction | Right |
| Winding Resistance | 13.9 ohm |
| Assembly Type | Lead Screw Assembly |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Motor IP Rating | IP40 |
| Steps per Revolution | 200 |
| Electrical Connection | Plug-In Connector |
| Phase | 2 |
| Right End Components | None |
| Screw Material Grade | 300 |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Frame | NEMA 8 |
| Nut Dynamic Load Capacity | 302 N |
| Country of Origin | United States |
