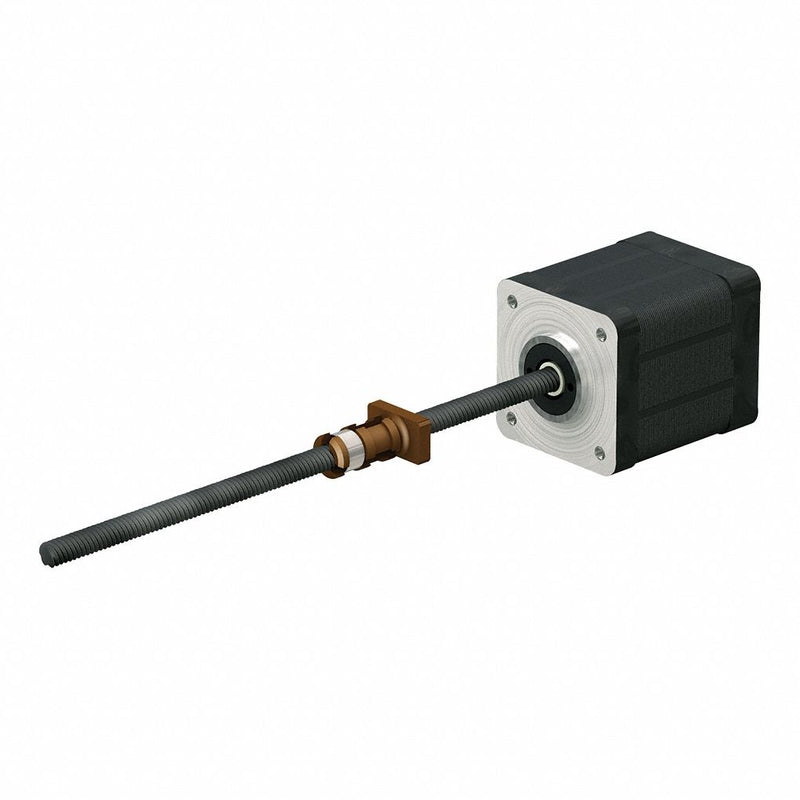

PBC Linear LSR0601T-0100-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 100 mm Lg
Original price
$380.02
-
Original price
$380.02
Original price
$380.02
$380.02
-
$380.02
Current price
$380.02
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 100 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
| Nut Type | Anti-Backlash |
|---|---|
| Nut Drag Torque | 0.0134 to 0.0164 Nm |
| Percent Efficiency | 39% |
| Travel per Step | 0.005 in |
| Insulation Class | B |
| Screw Material Grade | 300 |
| Step Accuracy | +/-5% |
| Motor IP Rating | IP40 |
| Lead Accuracy | 0.003 in/ft |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Nut Material | Stainless Steel |
| Nut Shape | Rectangle |
| Phase | 2 |
| Left End Components | None |
| Electrical Connection | Plug-In Connector |
| Insulation Resistance | 100 Mohm |
| Assembly Type | Lead Screw Assembly |
| Coating Material | PTFE |
| Motor Type | Stepper Motor |
| Thread Direction | Right |
| Screw Material | Stainless Steel |
| Steps per Revolution | 200 |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Rated Current | 1 A |
| Screw Type | Lead Screw |
| Winding Resistance | 2.7 ohm |
| Frame | NEMA 11 |
| Right End Components | None |
| Nut Dynamic Load Capacity | 302 N |
| Country of Origin | United States |
