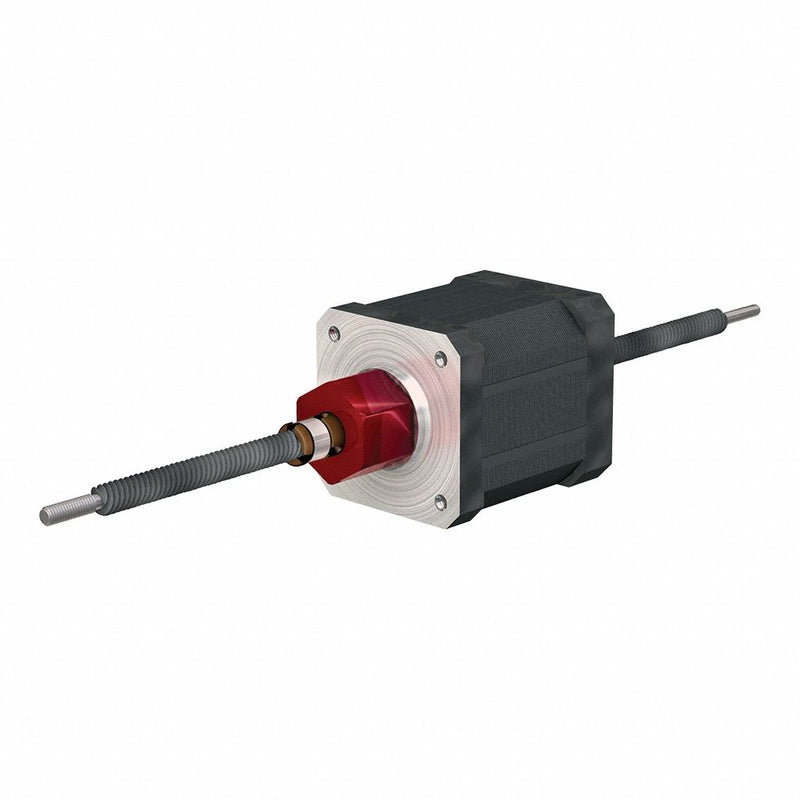

PBC Linear LSR0601T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 200 mm Lg
Original price
$371.13
-
Original price
$371.13
Original price
$371.13
$371.13
-
$371.13
Current price
$371.13
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 200 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Right End Components | None |
|---|---|
| Assembly Type | Non-Captive Lead Screw Assembly |
| Rated Current | 1.5 A |
| Thread Direction | Right |
| Travel per Step | 0.010 mm |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Percent Efficiency | 39% |
| Nut Type | Anti-Backlash |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Screw Material | Stainless Steel |
| Nut Material | Stainless Steel |
| Insulation Class | B |
| Insulation Resistance | 100 Mohm |
| Motor IP Rating | IP40 |
| Phase | 2 |
| Coating Material | PTFE |
| Frame | NEMA 14 |
| Winding Resistance | 1.61 ohm |
| Lead Accuracy | 0.003 in/ft |
| Screw Material Grade | 300 |
| Electrical Connection | Plug-In Connector |
| Motor Type | Stepper Motor |
| Steps per Revolution | 200 |
| Screw Type | Lead Screw |
| Left End Components | None |
| Step Accuracy | +/-5% |
| Country of Origin | United States |
