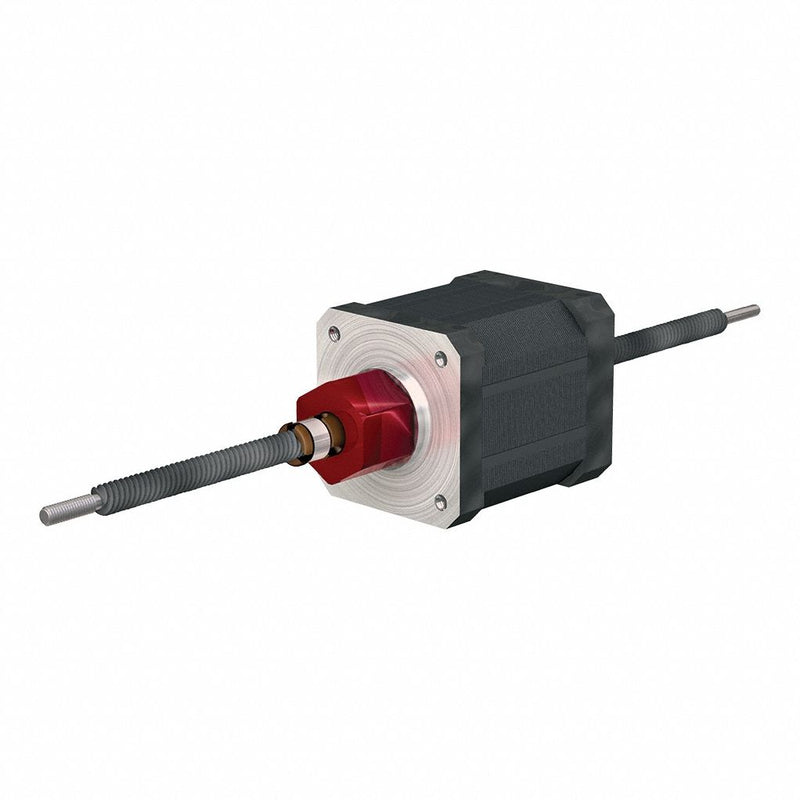

PBC Linear LSR0602T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 2 mm Lead, 200 mm Lg
Original price
$371.13
-
Original price
$371.13
Original price
$371.13
$371.13
-
$371.13
Current price
$371.13
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Insulation Class B, Screw Diameter 6 mm, Lead Length 2 mm, Screw Length 200 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Percent Efficiency | 76% |
|---|---|
| Frame | NEMA 14 |
| Motor Type | Stepper Motor |
| Step Accuracy | +/-5% |
| Rated Current | 1.5 A |
| Travel per Step | 0.020 mm |
| Electrical Connection | Plug-In Connector |
| Motor IP Rating | IP40 |
| Winding Resistance | 1.61 ohm |
| Steps per Revolution | 200 |
| Coating Material | PTFE |
| Screw Material | Stainless Steel |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Insulation Resistance | 100 Mohm |
| Screw Material Grade | 300 |
| Thread Direction | Right |
| Lead Accuracy | 0.003 in/ft |
| Nut Type | Anti-Backlash |
| Insulation Class | B |
| Phase | 2 |
| Nut Material | Stainless Steel |
| Country of Origin | United States |
