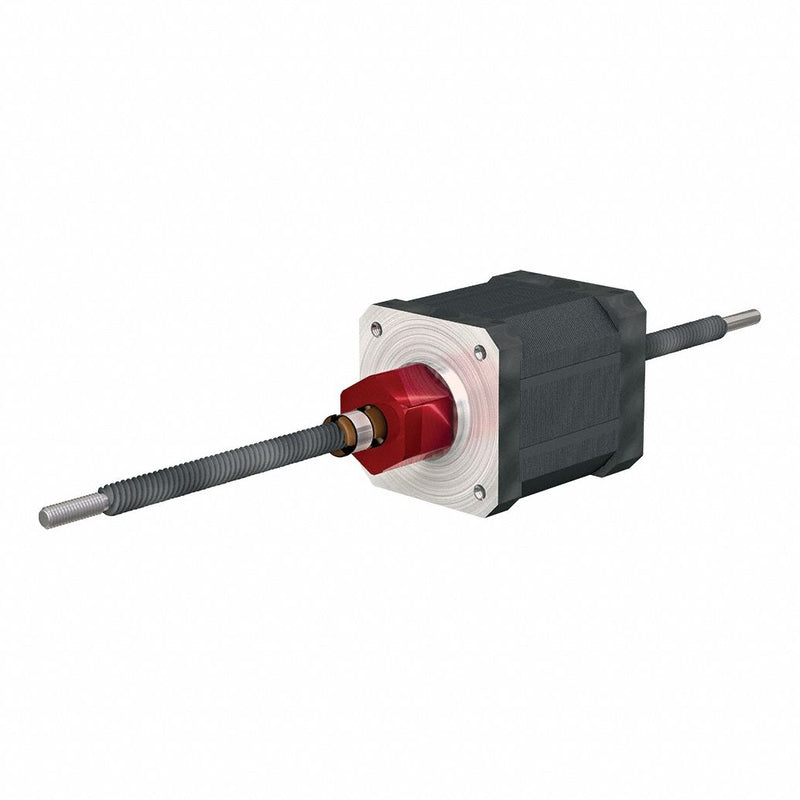

PBC Linear LSR0602T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 2 mm Lead, 250 mm Lg
Original price
$347.04
-
Original price
$347.04
Original price
$347.04
$347.04
-
$347.04
Current price
$347.04
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Insulation Class B, Screw Diameter 6 mm, Lead Length 2 mm, Screw Length 250 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Screw Diameter | 6 mm |
|---|---|
| Screw Length | 250 mm |
| Lead Length | 2 mm |
| Motor Size | NEMA 17 |
| Motor Length | 39.8 mm |
| Screw Type | Lead Screw |
| Travel per Step | 0.060 mm |
| Insulation Resistance | 100 Mohm |
| Assembly Type | Non-Captive Lead Screw Assembly |
| Nut Type | Anti-Backlash |
| Motor Type | Stepper Motor |
| Phase | 2 |
| Coating Material | PTFE |
| Thread Direction | Right |
| Nut Material | Stainless Steel |
| Step Accuracy | +/-5% |
| Screw Material | Stainless Steel |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Lead Accuracy | 0.003 in/ft |
| Rated Current | 2 A |
| Percent Efficiency | 60% |
| Electrical Connection | Plug-In Connector |
| Insulation Class | B |
| Steps per Revolution | 200 |
| Motor IP Rating | IP40 |
| Winding Resistance | 1.04 ohm |
| Country of Origin | United States |
