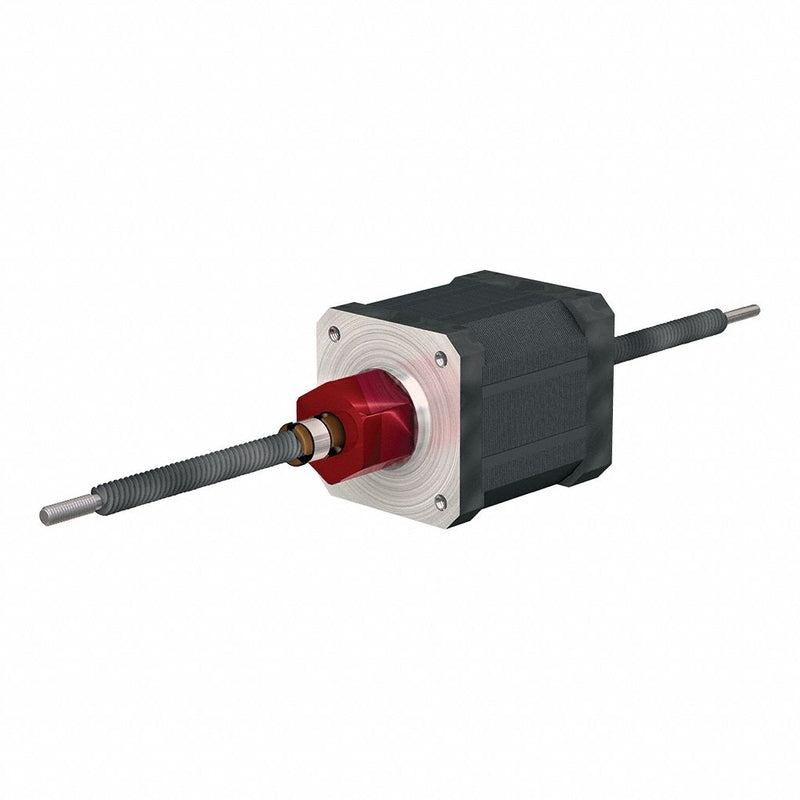

PBC Linear LSR0605T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 200 mm Lg
Original price
$371.13
-
Original price
$371.13
Original price
$371.13
$371.13
-
$371.13
Current price
$371.13
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Insulation Class B, Screw Diameter 6 mm, Lead Length 5 mm, Screw Length 200 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Assembly Type | Non-Captive Lead Screw Assembly |
|---|---|
| Right End Components | None |
| Frame | NEMA 14 |
| Screw Material Grade | 300 |
| Screw Material | Stainless Steel |
| Screw Type | Lead Screw |
| Thread Direction | Right |
| Coating Material | PTFE |
| Motor Type | Stepper Motor |
| Electrical Connection | Plug-In Connector |
| Insulation Resistance | 100 Mohm |
| Steps per Revolution | 200 |
| Winding Resistance | 1.61 ohm |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Nut Type | Anti-Backlash |
| Left End Components | None |
| Percent Efficiency | 76% |
| Step Accuracy | +/-5% |
| Rated Current | 1.5 A |
| Travel per Step | 0.030 mm |
| Nut Material | Stainless Steel |
| Phase | 2 |
| Motor IP Rating | IP40 |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Insulation Class | B |
| Lead Accuracy | 0.003 in/ft |
| Country of Origin | United States |
