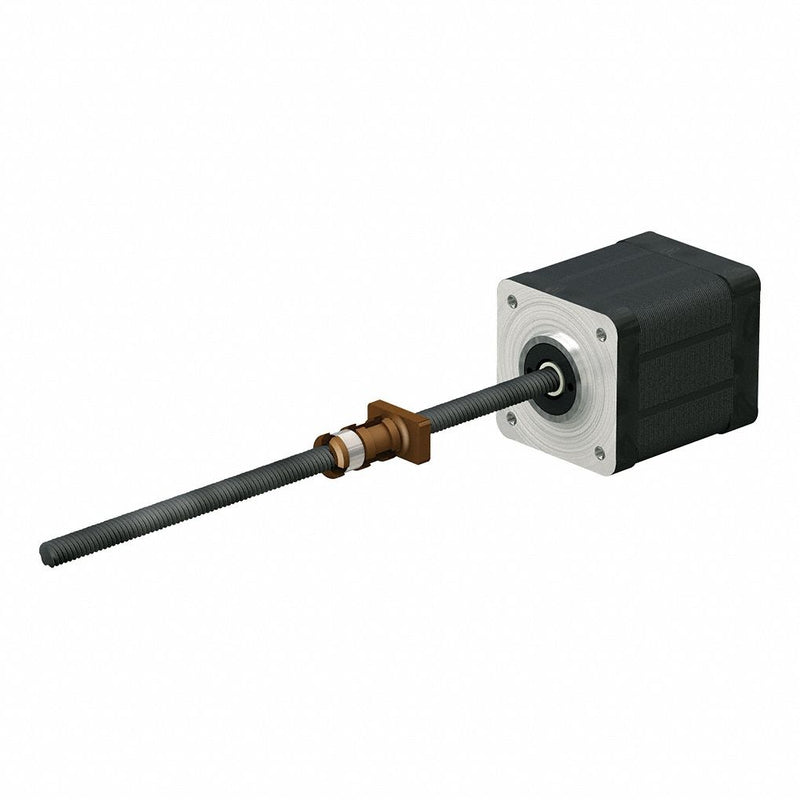

PBC Linear LSR0605T-0250-VCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg
Original price
$467.19
-
Original price
$467.19
Original price
$467.19
$467.19
-
$467.19
Current price
$467.19
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 5 mm, Screw Length 250 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
| Screw Material | Stainless Steel |
|---|---|
| Travel per Step | 0.025 mm |
| Nut Type | Anti-Backlash |
| Motor IP Rating | IP40 |
| Thread Direction | Right |
| Left End Components | None |
| Insulation Class | B |
| Percent Efficiency | 76% |
| Rated Current | 0.4 A |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Winding Resistance | 13.9 ohm |
| Nut Drag Torque | 0.0134 to 0.0164 Nm |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Phase | 2 |
| Lead Accuracy | 0.003 in/ft |
| Frame | NEMA 8 |
| Steps per Revolution | 200 |
| Motor Type | Stepper Motor |
| Right End Components | None |
| Coating Material | PTFE |
| Step Accuracy | +/-5% |
| Nut Material | Stainless Steel |
| Insulation Resistance | 100 Mohm |
| Assembly Type | Lead Screw Assembly |
| Nut Shape | Rectangle |
| Electrical Connection | Plug-In Connector |
| Screw Material Grade | 300 |
| Screw Type | Lead Screw |
| Nut Dynamic Load Capacity | 302 N |
| Country of Origin | United States |
