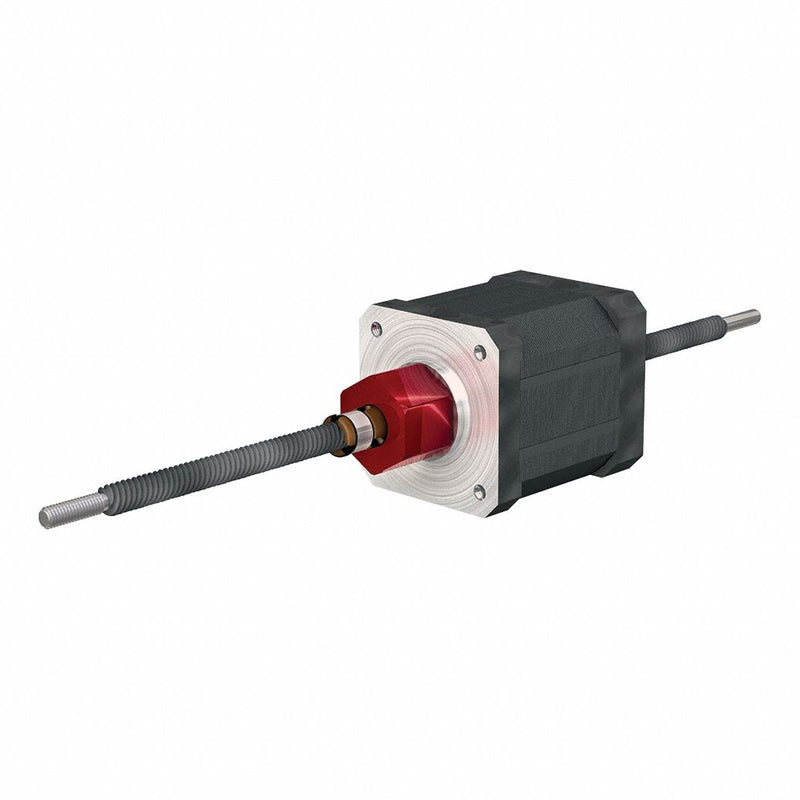

PBC Linear LSR1001T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 1 mm Lead, 300 mm Lg
Original price
$423.48
-
Original price
$423.48
Original price
$423.48
$423.48
-
$423.48
Current price
$423.48
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Insulation Class B, Screw Diameter 10 mm, Lead Length 1 mm, Screw Length 300 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Step Accuracy | +/-5% |
|---|---|
| Left End Components | None |
| Motor Type | Stepper Motor |
| Lead Accuracy | 0.003 in/ft |
| Rated Current | 2.2 A |
| Right End Components | None |
| Insulation Class | B |
| Thread Direction | Right |
| Percent Efficiency | 28% |
| Phase | 2 |
| Assembly Type | Non-Captive Lead Screw Assembly |
| Electrical Connection | Plug-In Connector |
| Coating Material | PTFE |
| Steps per Revolution | 200 |
| Insulation Resistance | 100 Mohm |
| Screw Material | Stainless Steel |
| Frame | NEMA 23 |
| Nut Material | Stainless Steel |
| Nut Type | Anti-Backlash |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Winding Resistance | 1.6 ohm |
| Travel per Step | 0.005 mm |
| Motor IP Rating | IP40 |
| Screw Material Grade | 300 |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Screw Type | Lead Screw |
| Country of Origin | United States |
