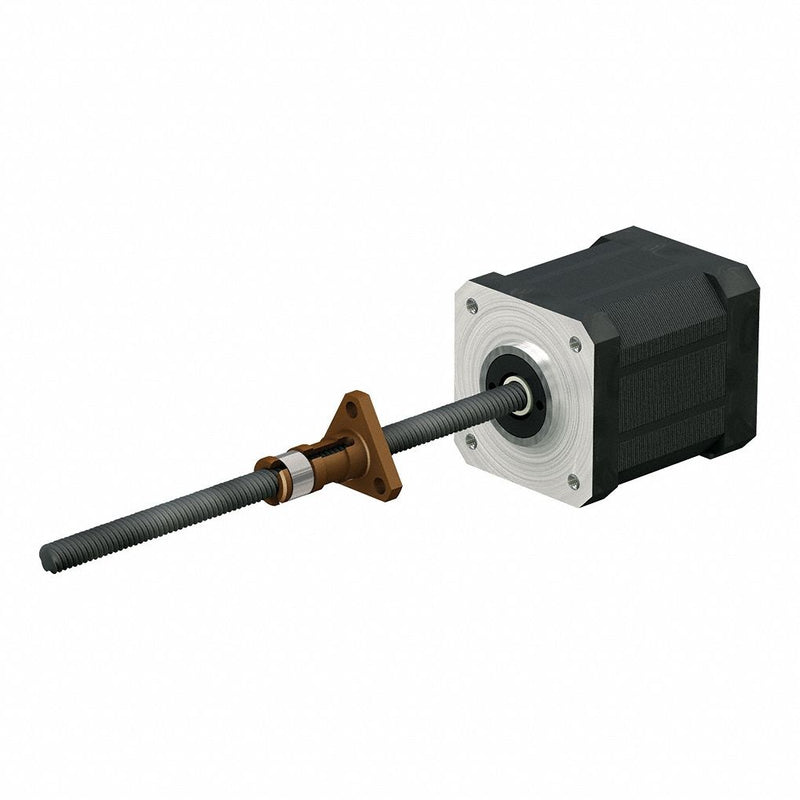

PBC Linear LSR1001T-0300-TCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 1 mm Lead, 300 mm Lg
Original price
$419.81
-
Original price
$419.81
Original price
$419.81
$419.81
-
$419.81
Current price
$419.81
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Triangle, Insulation Class B, Screw Diameter 10 mm, Lead Length 1 mm, Screw Length 300 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
| Percent Efficiency | 28% |
|---|---|
| Assembly Type | Lead Screw Assembly |
| Motor Type | Stepper Motor |
| Step Accuracy | +/-5% |
| Rated Current | 1.5 A |
| Lead Accuracy | 0.003 in/ft |
| Screw Material | Stainless Steel |
| Left End Components | None |
| Motor IP Rating | IP40 |
| Electrical Connection | Plug-In Connector |
| Right End Components | None |
| Phase | 2 |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Insulation Resistance | 100 Mohm |
| Thread Direction | Right |
| Winding Resistance | 1.61 ohm |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Insulation Class | B |
| Screw Type | Lead Screw |
| Nut Type | Anti-Backlash |
| Nut Material | Stainless Steel |
| Steps per Revolution | 200 |
| Coating Material | PTFE |
| Screw Material Grade | 300 |
| Frame | NEMA 14 |
| Nut Drag Torque | 0.0197 to 0.0240 Nm |
| Nut Shape | Triangle |
| Nut Dynamic Load Capacity | 400 N |
| Country of Origin | United States |
