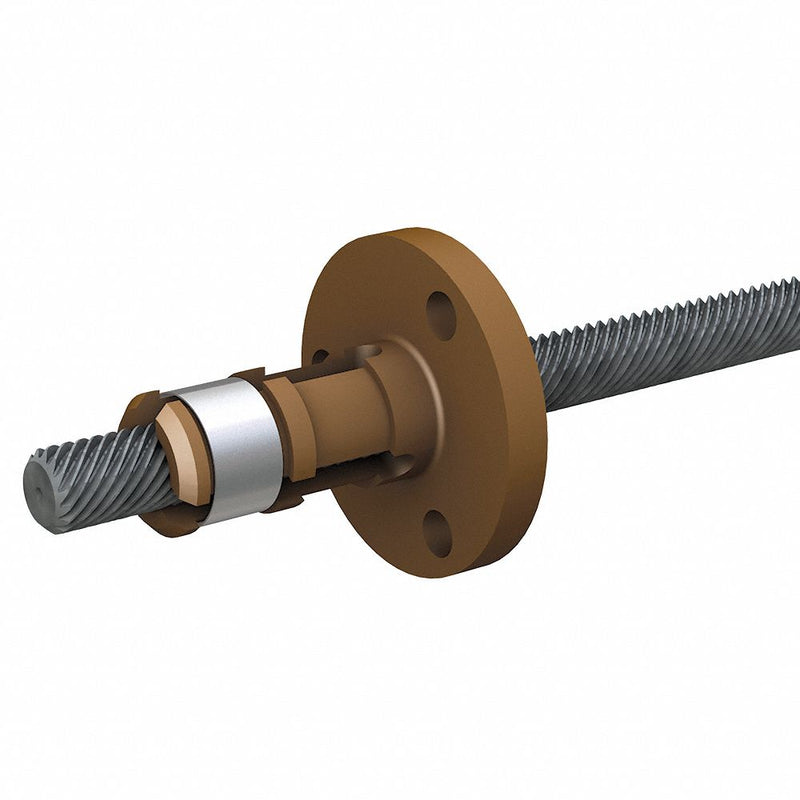

PBC Linear LSR1001T-0508-RCF-NNN-NNN-N Precision Lead Screw, 10 mm Screw Dia, 1 mm Lead, 508 mm Lg, Anti-Backlash Nut
Original price
$214.69
-
Original price
$214.69
Original price
$214.69
$214.69
-
$214.69
Current price
$214.69
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Round, Screw Diameter 10 mm, Lead Length 1 mm, Screw Length 508 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Nut Dynamic Load Capacity 400 N, Assembly Type Lead Screw and Nut Assembly, Nut Bolt Circle Diameter 28.6 mm, Nut Diameter 15.9 mm, Nut Flange Thickness 4.8 mm
| Thread Direction | Right |
|---|---|
| Screw Type | Lead Screw |
| Assembly Type | Lead Screw and Nut Assembly |
| Nut Type | Anti-Backlash |
| Nut Shape | Round |
| Coating Material | PTFE |
| Screw Material | Stainless Steel |
| Screw Material Grade | 300 |
| Nut Material | Stainless Steel |
| Lead Accuracy | 0.003 in/ft |
| Nut Drag Torque | 0.0197 to 0.0240 Nm |
| Percent Efficiency | 28% |
| Left End Components | None |
| Right End Components | None |
| Nut Dynamic Load Capacity | 400 N |
| Country of Origin | United States |
