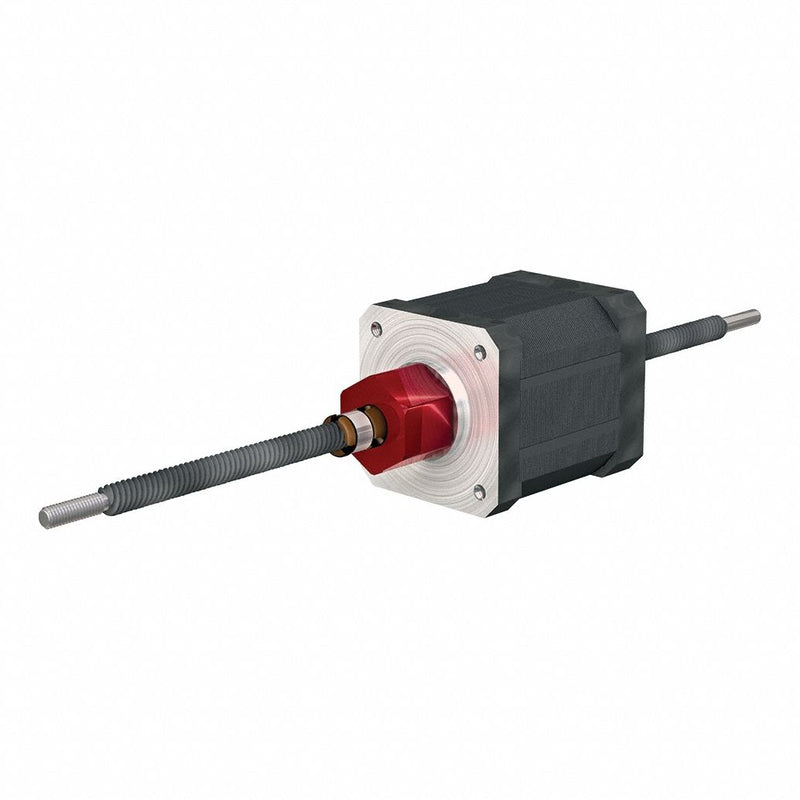

PBC Linear LSR1005T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 300 mm Lg
Original price
$423.48
-
Original price
$423.48
Original price
$423.48
$423.48
-
$423.48
Current price
$423.48
Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 300 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor
| Coating Material | PTFE |
|---|---|
| Percent Efficiency | 66% |
| Insulation Class | B |
| Motor Type | Stepper Motor |
| Phase | 2 |
| Screw Material | Stainless Steel |
| Travel per Step | 0.025 mm |
| Winding Resistance | 1.6 ohm |
| Assembly Type | Non-Captive Lead Screw Assembly |
| Insulation Resistance | 100 Mohm |
| Steps per Revolution | 200 |
| Left End Components | None |
| Screw Type | Lead Screw |
| Nut Type | Anti-Backlash |
| Thread Direction | Right |
| Nut Material | Stainless Steel |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Lead Accuracy | 0.003 in/ft |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Screw Material Grade | 300 |
| Motor IP Rating | IP40 |
| Frame | NEMA 23 |
| Rated Current | 2.2 A |
| Right End Components | None |
| Step Accuracy | +/-5% |
| Electrical Connection | Plug-In Connector |
| Country of Origin | United States |
