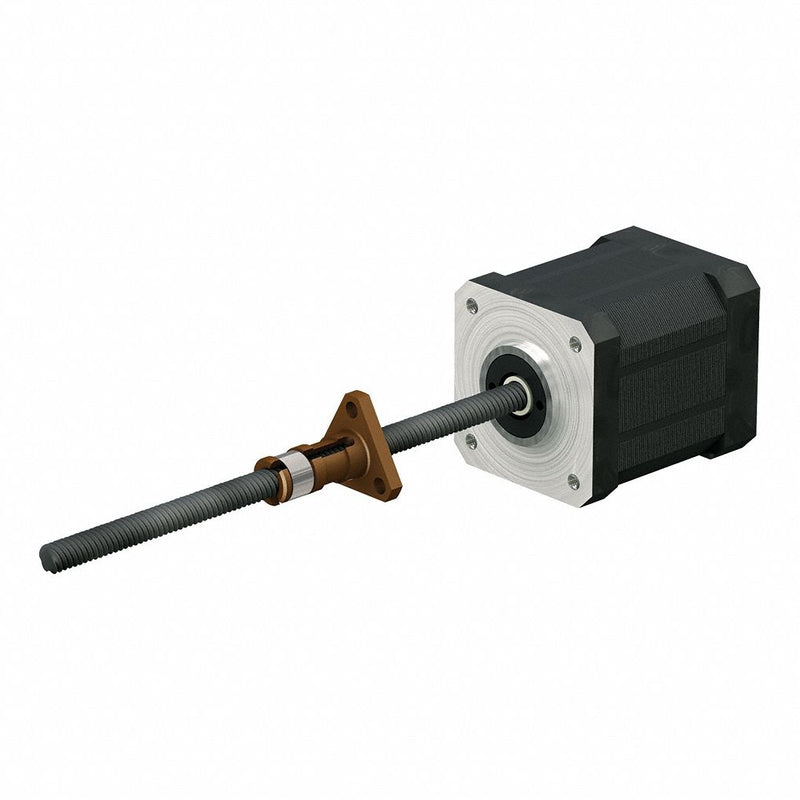

PBC Linear LSR1005T-0400-TCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 400 mm Lg
Original price
$456.98
-
Original price
$456.98
Original price
$456.98
$456.98
-
$456.98
Current price
$456.98
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Triangle, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 400 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
| Nut Type | Anti-Backlash |
|---|---|
| Nut Shape | Triangle |
| Motor Minimum Operating Temperature | -20 Degrees C |
| Travel per Step | 0.025 mm |
| Right End Components | None |
| Motor IP Rating | IP40 |
| Screw Type | Lead Screw |
| Step Accuracy | +/-5% |
| Rated Current | 1.5 A |
| Coating Material | PTFE |
| Frame | NEMA 14 |
| Nut Drag Torque | 0.0197 to 0.0240 Nm |
| Nut Material | Stainless Steel |
| Screw Material | Stainless Steel |
| Insulation Class | B |
| Insulation Resistance | 100 Mohm |
| Percent Efficiency | 66% |
| Assembly Type | Lead Screw Assembly |
| Screw Material Grade | 300 |
| Steps per Revolution | 200 |
| Electrical Connection | Plug-In Connector |
| Winding Resistance | 1.61 ohm |
| Phase | 2 |
| Motor Type | Stepper Motor |
| Lead Accuracy | 0.003 in/ft |
| Motor Maximum Operating Temperature | 50 Degrees C |
| Thread Direction | Right |
| Left End Components | None |
| Nut Dynamic Load Capacity | 400 N |
| Country of Origin | United States |
